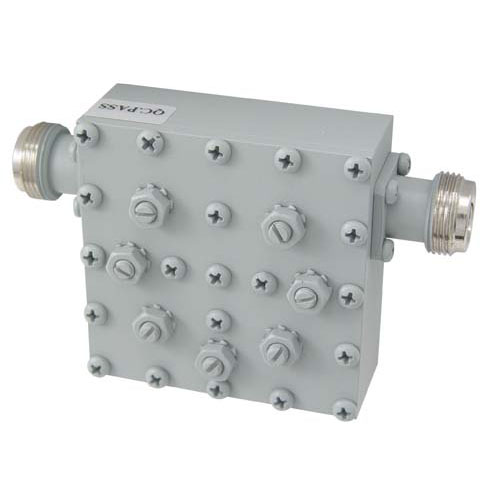

2.4 GHz Ultra High Q 4-Pole Indoor Bandpass Filter, Channel 1 - 2412 MHz

SKU BPF24-401
QTY available 6
Quantity Price
1 - 9 $171.99
10 - 24 $165.11
25 - 99 $158.23
100 + Call Us
Price $171.99

All Prices are in US Dollars and do not include duties



The HyperLink 2.4 GHz 4-Pole Ultra-High Q Wi-Fi channel filter are ideal for co-located equipment installations. By reducing out of band interference, improved performance of co-located equipment can be achieved. These bandpass filters are wide enough to pass high data rate 802.11g signals without degradation. These filters are designed to be installed indoors or in weather-resistant enclosures. Available in five versions for Channel 1, 3, 6, 9 and 11.


Features
  • Industrial Grade, Rugged Aluminum Construction
  • Reduce Interference and Improve Performance
  • Provides Lightning Protection (DC Short)
  • Ultra Low Insertion Loss (2 dB nominal)
  • Ultra-High Quality Microwave Cavity Filter, 30 MHz Bandwidth

Application
  • Ideal for high data rate 802.11b and 802.11g Wireless LAN applications


Product Resources

Key Specifications

Key Specifications

Bands
WiFi
Connector-In Series
N
Connector-In Gender
Female
Connector-Out Series
N
Connector-Out Gender
Female
Bandpass Min Frequency
2.4 GHz
Bandpass Max Frequency
2.43 GHz
RF Filter Design
Cavity
Impedance
50 Ohm
Maximum Insertion Loss
2 dB
Maximum Power
50 Watts
