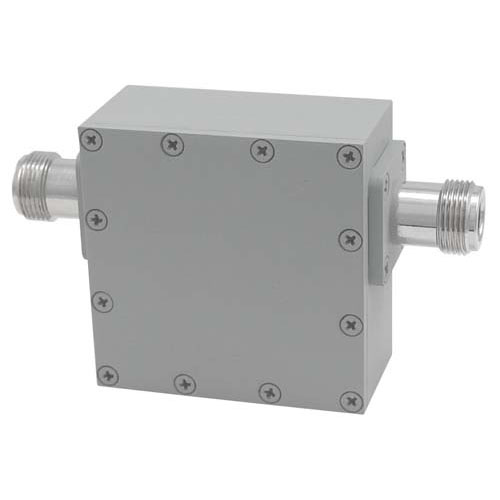

4.9 GHz Ultra High Q 4-Pole Outdoor Bandpass Filter, Full Band

SKU BPF4900A
QTY available 1
Quantity Price
1 - 9 $207.99
10 - 24 $199.67
25 - 99 $191.35
100 + Call Us
Price $207.99

All Prices are in US Dollars and do not include duties



The HyperLink 4.9 GHz 4-Pole Ultra-High Q full band channel filter is ideal for co-located equipment installations. This filter is designed for full band applications. By reducing interference outside the 4.9 GHz band, improved performance of co-located equipment can be achieved. These bandpass filters are wide enough to pass high data rate signals without degradation. The BPF4900A features rugged aluminum weatherproof construction and can be used indoors or outdoor.

Reduce Interference and Improve Performance
Compact Size
N-Female Connectors
Optional Mast Mounting Kit Available

Features
  • Provides Lightning Protection (DC Short)
  • Ultra Low Insertion Loss (< 1.0 dB nominal)
  • Ideal for Homeland Security, Public Safety Services: Fire, Police and Security applications
  • Industrial Grade, Rugged Aluminum Weatherproof Construction for Outdoor or Indoor Use
  • Ultra-High Quality Microwave Cavity Filter & 50 MHz Bandwidth

Application
  • Homeland Security
  • RF
  • WLAN
  • Public safety


Product Resources

Key Specifications

Key Specifications

Bands
Public Safety
Connector-In Series
N
Connector-In Gender
Female
Connector-Out Series
N
Connector-Out Gender
Female
Bandpass Min Frequency
4.94 GHz
Bandpass Max Frequency
4.99 GHz
RF Filter Design
Cavity
Impedance
50 Ohm
Maximum Insertion Loss
1 dB
Maximum Power
50 Watts
