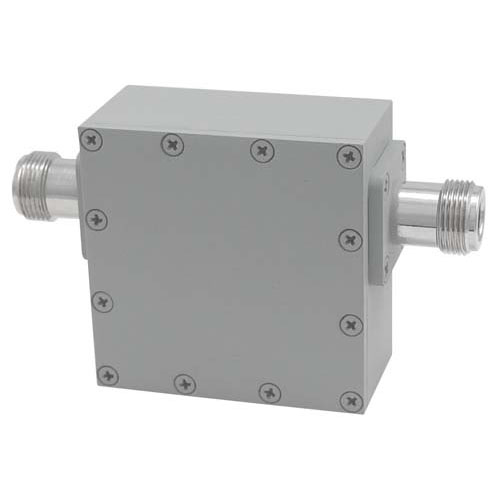

5.8 GHz Ultra High Q 4-Pole Outdoor Bandpass Filter, Full Band

SKU BPF5800A
QTY available 60
Quantity Price
1 - 9 $263.99
10 - 24 $253.43
25 - 99 $242.87
100 + Call Us
Price $263.99

All Prices are in US Dollars and do not include duties



The HyperLink 5.8 GHz 4-Pole Ultra-High Q full band channel filter is ideal for co-located equipment installations. This filter is designed for full band applications. By reducing interference outside the 5800 MHz ISM band, improved performance of co-located equipment can be achieved. These bandpass filters are wide enough to pass high data rate 802.11a signals without degradation. The BPF5800 features ruged aluminum weatherproof construction and can be used indoors or outdoor.

- Ideal for high data rate 802.11a, ISM and UNII Wireless LAN applications
- Ideal for Minimizing Adjacent Channel Interference
- Compact Size
- N-Female Connectors
- Optional Mast Mounting Kit Available

Features
  • Industrial Grade, Rugged Aluminum Weatherproof Construction for Outdoor or Indoor Use
  • Ultra Low Insertion Loss (0.5 dB nominal) & 150 MHz Bandwidth
  • Provides Lightning Protection (DC Short)
  • Reduce Interference and Improve Performance
  • Ultra-High Quality Microwave Cavity Filter

Application
  • 802.11a
  • Wi-Fi
  • RF
  • WLAN


Product Resources

Key Specifications

Key Specifications

Bands
WiFi, ISM
Connector-In Series
N
Connector-In Gender
Female
Connector-Out Series
N
Connector-Out Gender
Female
Bandpass Min Frequency
5.73 GHz
Bandpass Max Frequency
5.88 GHz
RF Filter Design
Cavity
Impedance
50 Ohm
Maximum Insertion Loss
0.5 dB
Maximum Power
50 Watts
