2 Watt RF Load Up to 3 GHz with N Male Aluminum Body

SKU LCTR1004
QTY available 9
Quantity Price
1 - 24 $20.19
25 - 49 $19.18
50 - 99 $18.17
100 + Call Us
Price $20.19

All Prices are in US Dollars and do not include duties

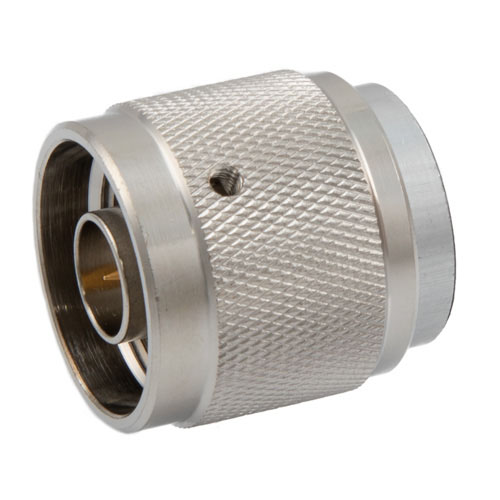

LCTR1004 is a high performance RF load from L-com. With aluminum housing and N-type male connector, the RF terminator offers excellent electrical performance from DC to 3GHz. The part is available in stock with same day shipping.

Features
  • Frequency range from DC to 3GHz
  • Max Power 2W
  • Operating temp range from -55 to 125C
  • VSWR <1.10

Application
  • 50 Ohm applications
  • Signal splitters
  • Coaxial termination


Product Resources

Key Specifications

Key Specifications

Termination Type
RF Load
Impedance
50 Ohm
Maximum Frequency
3 GHz
Maximum VSWR
1.1:1
Minimum Frequency
DC
Maximum Power
2 Watt
Power, Peak
500 Watts
Connector Series
N
Connector Gender
Male
Temperature, Max Operating
125 deg C
Temperature, Min Operating
-55 deg C
