900DB-Series Direct Burial Coax Cable, By The Foot

  • Picture of 900DB-Series Direct Burial Coax Cable, By The Foot

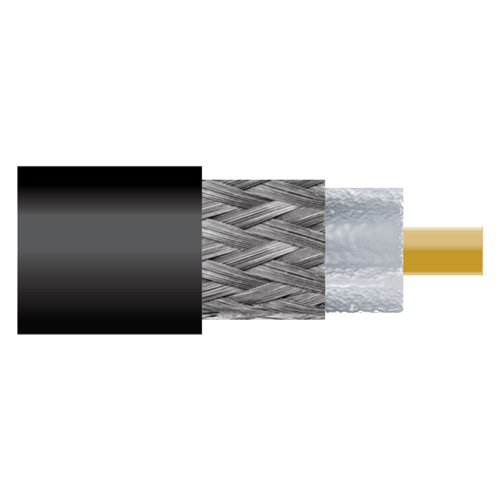

Picture of 900DB-Series Direct Burial Coax Cable, By The Foot
SKU CA900DB-TW-FOOT
Available to Ship 216
Quantity Price
1 - 24 $9.80
25 - 49 $9.31
50 - 99 $8.82
100 + Call Us
Price $9.80

All Prices are in US Dollars and do not include duties



900DB-Series direct burial watertight cable - By The Foot

Features
  • Direct burial cable - completely watertight
  • Excellent low loss characteristics
  • For use up to 6 GHz!
  • Great alternative to armored cables
  • Please order carefully as cables by-the-foot are not returnable

Application
  • RF antenna cable assemblies
  • RF Pigtails
  • Wi-Fi installations
  • WLAN


Product Resources

Key Specifications

Key Specifications

Generic Name
900DB Series
Flex Type
Flexible
Impedance
50 Ohm
Dielectric Type
Foam PE
Velocity of Propagation
87 %
Jacket Diameter
0.87 in
Jacket Material
PE
No. of Shields
2
Attenuation at 1 Ghz.
2.01 dB
RF Shielding
90 dB
Max Operating Temperature
85 deg C
Center Conductor Type
Tube
Inner Conductor, Number of Strands
1
Minimum Bend Radius, One Time
3 in
Minimum Bend Radius, Repeated
9 in
Coax Type
Coax

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
