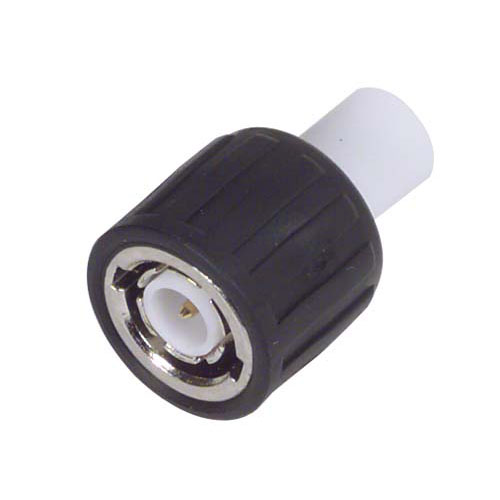

BNC Terminator, Male, use with RG62 (93 Ohms) Nylon Cap

SKU BIF9M
QTY available 93
Quantity Price
1 - 24 $1.13
25 - 49 $1.02
50 - 99 $0.90
100 + Call Us
Price $1.13

All Prices are in US Dollars and do not include duties



This BNC male terminator features an insulated coupling nut and a white color coded cap indicating a 93 Ohm resistance. A ¼ watt @70 degrees metal film type resistor with a +/- 1% tolerance is utilized.

Features
  • Color coded white to assure proper attachment
  • 1/4 watt terminating resistor
  • Insulated to avoid grounding problems
  • Line termination of a 93 Ohm transmission line

Application
  • 10Base-3
  • Cheapernet
  • Ethernet
  • Thinnet


Product Resources

Key Specifications

Key Specifications

Termination Type
RF Load
Impedance
93 Ohm
Maximum Frequency
500 MHz
Maximum VSWR
2:1
Minimum Frequency
DC
Maximum Power
0.25 Watt
Connector Series
BNC
Connector Gender
Male
Package Family
Coax
