Plenum Rated RG401 Low PIM Coaxial Cable - By The Foot

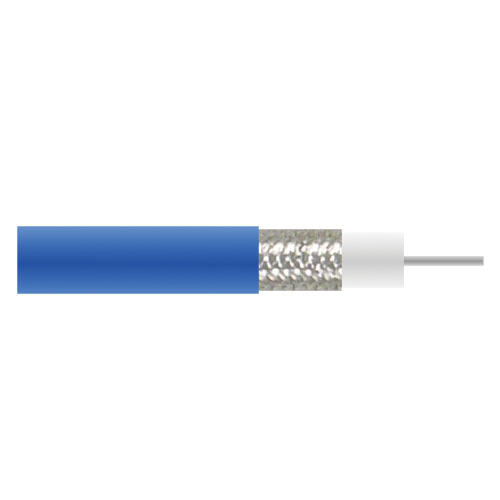

  • Picture of Plenum Rated RG401 Low PIM Coaxial Cable - By The Foot
Picture of Plenum Rated RG401 Low PIM Coaxial Cable - By The Foot
SKU CA-RG401-FOOT
Available to Ship 10700
Quantity Price
1 - 24 $6.89
25 - 49 $6.55
50 - 99 $6.20
100 + Call Us
Price $6.89

All Prices are in US Dollars and do not include duties



L-com’s RG401 Plenum Rated coaxial cable feature Passive Intermodulation (PIM) specifications as low as -160dBc. A formable type cable, it features a FEP Jacket and is high temperature rated. Available By the Foot, these cables are excellent for use in Distributed Antenna Systems (DAS).

This cable is also offered in L-com's Low PIM RG401 cables assemblies. To order a cable assembly using RG401, Click Here.

For complete specifications, click on the Drawing link in the Download section.


Features
  • -160 dBc Passive Intermodulation (PIM) rating
  • FEP jacket
  • High temperature rated
  • Please order carefully as cables by-the-foot are not returnable
  • Plenum rated

Application
  • Low PIM coax cable assemblies
  • 4G/LTE Cellular applications
  • Distributed antenna systems (DAS)


Product Resources

Key Specifications

Key Specifications

Generic Name
RG401
Flex Type
Flexible
Impedance
50 Ohm
Dielectric Type
PTFE
Velocity of Propagation
70 %
Jacket Diameter
0.275 in
Jacket Material
FEP
No. of Shields
1
Passive Intermodulation
-160 dBc
Max Operating Temperature
125 deg C
Inner Conductor, Number of Strands
1
Minimum Bend Radius, One Time
1.18 in
Coax Type
Coax

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
