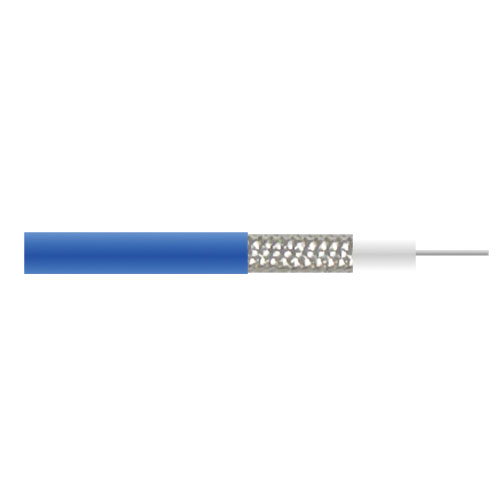

Plenum Rated RG402 Low PIM Coaxial Cable - By The Foot

SKU CA-RG402-FOOT
QTY available 450
Quantity Price
1 - 24 $3.28
25 - 49 $3.12
50 - 99 $2.95
100 + Call Us
Price $3.28

All Prices are in US Dollars and do not include duties



L-com’s RG402 Plenum Rated coaxial cable feature Passive Intermodulation (PIM) specifications as low as -160dBc. A formable type cable, it features a FEP Jacket and is high temperature rated. Available By the Foot, these cables are excellent for use in Distributed Antenna Systems (DAS).

This cable is also offered in L-com's Low PIM RG402 cables assemblies. To order a cable assembly using RG402, Click Here.

For complete specifications, click on the Drawing link in the Download section.


Features
  • -160 dBc Passive Intermodulation (PIM) rating
  • FEP jacket
  • High temperature rated
  • Please order carefully as cables by-the-foot are not returnable
  • Plenum rated

Application
  • 4G/LTE Cellular applications
  • Distributed antenna systems (DAS)
  • Low PIM coax cable assemblies


Product Resources

Key Specifications

Key Specifications

Generic Name
RG402
Flex Type
Flexible
Impedance
50 Ohm
Dielectric Type
PTFE
Velocity of Propagation
70 %
Jacket Diameter
0.163 in
Jacket Material
FEP
No. of Shields
1
Passive Intermodulation
-160 dBc
RF Shielding
100 dB
Max Operating Temperature
125 deg C
Inner Conductor, Number of Strands
1
Minimum Bend Radius, One Time
0.39 in
Coax Type
Coax
