Protective Chained Cap Terminator, BNC 75 Ohm

SKU USP-CTB75
QTY available 185
Quantity Price
1 - 24 $12.79
25 - 49 $12.15
50 - 99 $11.51
100 + Call Us
Price $12.79

All Prices are in US Dollars and do not include duties

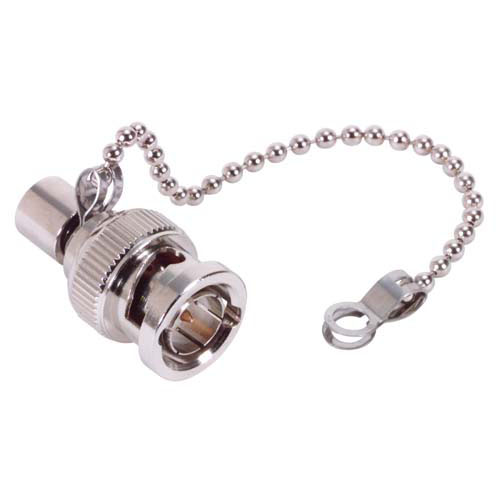

This BNC male terminator features a 75 Ohm resistance value. A retaining chain is also included to secure terminator and prevent loss.

Features
  • Termination of an unused 75 Ohm coaxial line
  • 1/4 Watt terminating resistor
  • Gold plated center contact for reduced signal loss
  • Retaining chain to prevent lost terminators when not used

Application
  • Cable management
  • LAN infrastructure
  • MDF/IDF applications
  • Network consolidation


Product Resources

Key Specifications

Key Specifications

Termination Type
RF Load
Impedance
75 Ohm
Maximum Frequency
1 GHz
Maximum VSWR
1.5:1
Minimum Frequency
DC
Maximum Power
0.25 Watt
Connector Series
BNC
Connector Gender
Male
Package Family
Coax
