SMA Terminator, Female, 50 Ohm

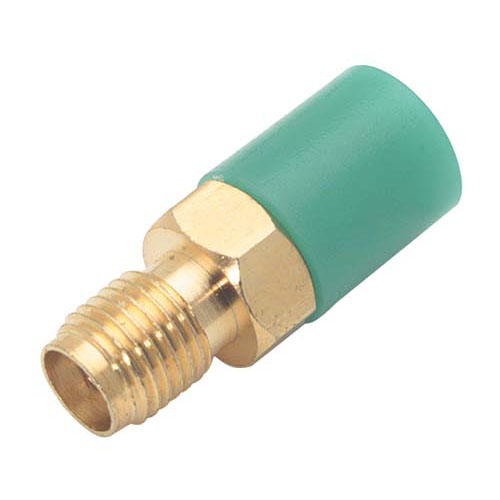

  • Picture of SMA Terminator, Female, 50 Ohm
  • Picture of SMA Terminator, Female, 50 Ohm
Picture of SMA Terminator, Female, 50 Ohm
SKU BTS5F
Available to Ship 585
Quantity Price
1 - 24 $15.39
25 - 49 $14.62
50 - 99 $13.85
100 + Call Us
Price $15.39

All Prices are in US Dollars and do not include duties



This SMA female terminator features a green color coded cap indicating a 50 Ohm resistance value for use with 50 Ohm coaxial cable such as RG58.

Features
  • Color coded green cap to assure proper mating
  • Termination of a 50 Ohm transmission line with SMA connectors
  • Gold plated body provides optimum resistance to corrosion
  • Gold plated contacts minimize attenuation

Application
  • 50 Ohm applications
  • Amplifier
  • WLAN
  • Coaxial termination

Key Specifications

Key Specifications

Termination Type
RF Load
Impedance
50 Ohm
Maximum Frequency
1 GHz
Maximum VSWR
1.5:1
Minimum Frequency
DC
Maximum Power
0.25 Watt
Body Material
Brass
Connector Series
SMA
Connector Gender
Female
Package Family
Coax

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
