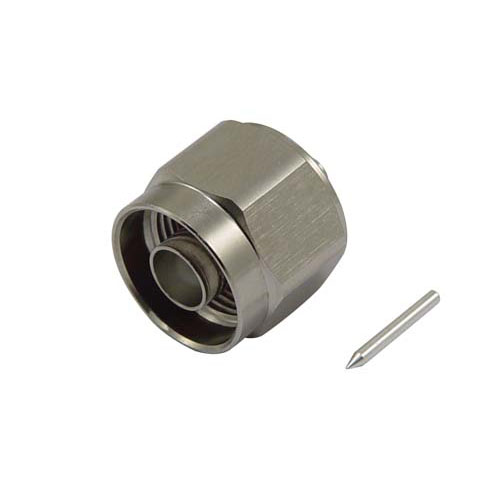

Type-N Male Solder Type Low PIM Connector for RG402

SKU ANM-1P200
QTY available 500
Quantity Price
1 - 24 $21.39
25 - 49 $19.25
50 - 99 $17.11
100 + Call Us
Price $21.39

All Prices are in US Dollars and do not include duties



The ANM-1P100 connector is ideal for used with Distributed Antenna Systems (DAS) do to its excellent Passive InterModulation (PIM) performance of -160dBc. This Type-N Male connector is for use with RG402 cable.

For additional information and complete specifications, see the 2D Drawing in Downloads section.


Features
  • For use with RG402 cable
  • Plated brass body ideal for outdoor use
  • Excellent Passive InterModulation performance of -160dBc

Application
  • Low PIM coax cable assemblies
  • Distributed antenna systems (DAS)
  • IEEE 802.11b and 802.11g Wireless LAN applications


Product Resources

Key Specifications

Key Specifications

Polarity
Standard
Connector Series
N
Connector Gender
Male
Impedance
50 Ohm
Body Style
Straight
Mount Method
None
Minimum Frequency
DC
Maximum Frequency
2.7 GHz
Interface Type 1
RG402
