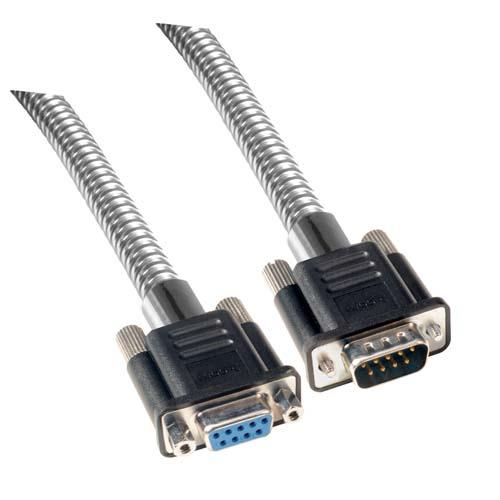

Metal Armored DB9 Cable, Male/Female, 10 ft

SKU CSMT9MF-10

Available to Ship 10

Quantity Price

1 - 24 $147.99

25 - 49 $140.59

50 - 99 $133.19

100 + Call Us

Price $147.99

Quantity

All Prices are in US Dollars and do not include duties

These unique cables feature a stainless steel crush resistant jacket over our premium D-sub braid & foil shielded cable to provide protection in applications where standard cables would be damaged due to excessive force. In addition, a custom steel internal enclosure under the backshell mold provides further strength. Crush resistance is 1500 PSI (Pounds per Square Inch).

Features

DB9 male to female cable assembly with metal protective outer jacket
Foil plus braid shield provides maximum protection against EMI/RFI
Gold plated contacts provide reliable connections with repeated mating cycles
Stainless steel material provides 1500 PSI crush resistance
Available in 6 lengths ranging from 2.5 to 50 feet

Application

Industrial environments
Data Networking
Industrial PCs
RS-232 serial communications

Product Resources

Product Compliance

REACH status

Not Available

RoHS status

Not Available

TSCA status

Not Available

PFAS status

Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
