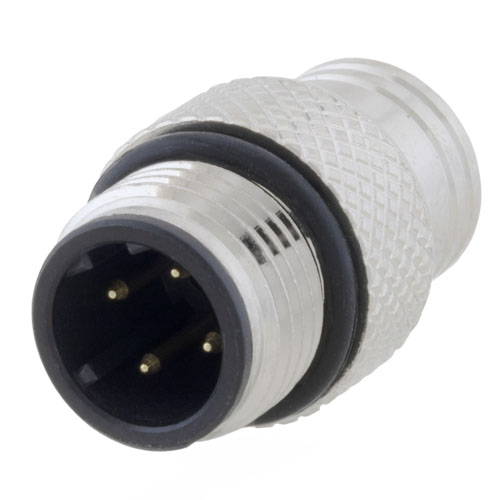

M12 4 Position D-code Mold Connector, Male, Shielded

SKU M124DM-MLD
QTY available 2123
Quantity Price
1 - 24 $18.79
25 - 49 $17.85
50 - 99 $16.91
100 + Call Us
Price $18.79

All Prices are in US Dollars and do not include duties



M12 mold connectors with solder cups are now available from L-com. These connectors are appropriate to direct solder to cable and can be over-molded or heat-shrinked. Available in male or female in 8 Position A-code, 4 Position D-Code and 8 Position X-code. The D and X-code connectors are rated for twisted pair or Ethernet applications while A-code is meant for straight wire use. All connectors are shielded and are IP67 or IP68 rated when properly terminated and mated.

Features
  • Individually packaged
  • Shield is nickel plate
  • D-code connectors are IP68 rated when mated properly and appropriately molded or shrinked
  • D-code temp range: -40° to 85°C
  • Suitable for up to Category 5e, 2 Pair Ethernet applications

Application
  • Industrial control and factory automation
  • Industrial Ethernet
  • Sensor and actuators
  • I/O connectivity
  • Installer, Engineer or Technician's kit
