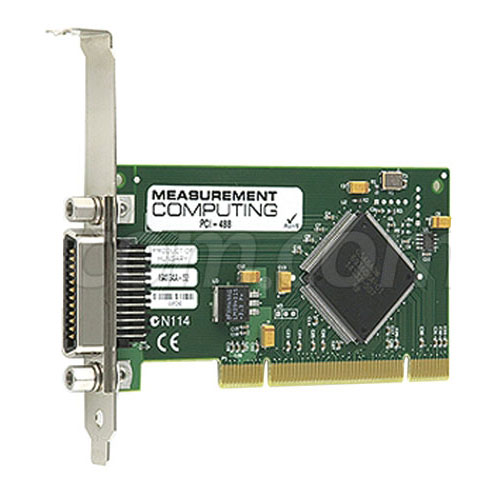

IEEE 488.2 Standard PCI Interface Card

SKU PCI-488
QTY available Call us

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Please contact our customer service team for assistance in identifying the appropriate replacement part for your application.

Replaced By:


The PCI-488 interface converts any PCI bus personal computer into an instrumentation control and data acquisition system. Connect up to 14 instruments using standard IEEE-488 cables. The PCI-488 transfers data over the GPIB at rates in excess of 1 million bytes per second using the maximum IEEE-488 specification cable length (2 meters times the number of devices). The PCI-488 includes the GPIB software library for Windows XP, Windows 2000, and LabVIEW. The library includes National Instruments' style 488.1 'ib' and 488.2 command sets. The driver provides support for 32-bit, Visual Basic and C/C++ language programs and is compatible with National Instruments' VISA and LabView.

Features
  • Data transfer rates over 1 MBPS
  • Used to add an IEEE 488.2 PCI interface to a PC
  • 1024-word FIFO buffer
  • Complete Talker/Listener/Controller
  • Includes GPIB-488 software library for Windows XP, Windows 2000, Windows Vista, Windows 7, and LabVIEW

Application
  • Instrument Control
  • Data Acquisition
  • Test and Measurement
