Premium IEEE-488 Cable, Normal/Normal 18.0m

  • Picture of Premium IEEE-488 Cable, Normal/Normal 18.0m
  • Picture of Premium IEEE-488 Cable, Normal/Normal 18.0m

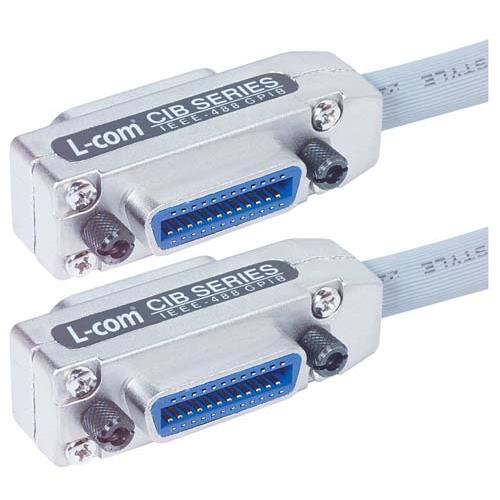

Picture of Premium IEEE-488 Cable, Normal/Normal 18.0m
SKU CIB24-18M
Available to Ship 26
Quantity Price
1 - 4 $1,170.00
5 - 9 $1,123.20
10 - 24 $1,076.40
25 + Call Us
Price $1,170.00

All Prices are in US Dollars and do not include duties



This is the best IEEE-488 cable available on the market today at any price. Featuring two braid shields plus two foil shields for maximum protection against EMI (electromagnetic interference). A unique backshell design with overlapping seams coupled with a crimp ferrule strain relief results in both protection against leakage and provides enhanced mechanical strength. This combination of features ensures a highly reliable cable that will pass the most stringent emissions testing while providing years of trouble free service. Custom modifications are available with modest minimum requirements. Contact L-com customer service today!

Features
  • 30 microinch gold contact plating provides reliable connections with repeated mating cycles
  • Aluminum nickel-plated shells with overlapping seams are corrosion resistant and inherently immune to EMI leakage
  • Cable exceeds IEEE-488 standards for connecting peripherals where EMI is an issue
  • Color: Gray
  • Superior crimped ferrule strain relief prevents unsightly separation common with other cables

Application
  • Data Acquisition
  • Instrument Control
  • Test and Measurement

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
