RS232 to RS485/RS422 Interface Converter DB9 -M /DB9-F (Ext. Powered) w/Opto- Isolation

SKU SC-232-D
QTY available Call us

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Please contact our customer service team for assistance in identifying the appropriate replacement part for your application.

Replaced By:

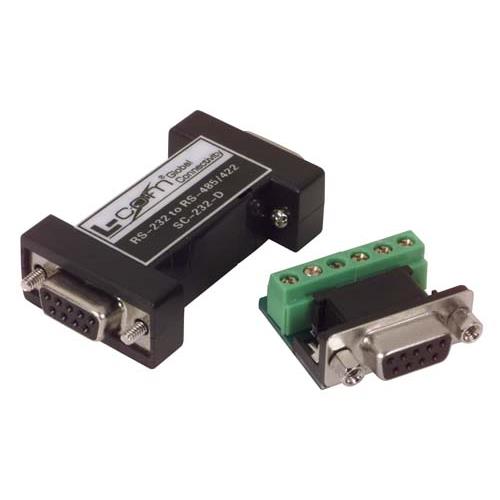

L-com's SC-232-D RS-232 interface converter features optical isolation to protect your valuable communications equipment from damaging ground loops. Additional features include Send Data Control (SDC) which automatically enables the RS-485 driver when data is present on the RS-232 side, 2,500 Volt isolation and 1,500 Watt surge protection. Includes DB9 female to screw terminal block adapter. SC-5VDC-PWR available (sold separately) Order online today!

Features
  • Used to convert RS-232 to RS-485/RS-422
  • 2,500V Opto-Isolation
  • External 5V DC power supply available, required for the RS-485/422 side only (sold separately)
  • Automatic Send Data Control, no software drivers needed
  • Operating temp: -40C to +85C

Application
  • SCADA
  • RS-232
  • RS-485
  • Industrial networking
  • Serial communications
