Icron USB 3.0 Spectra™ 3022 2-Port Multimode Fiber USB Extender (100m)

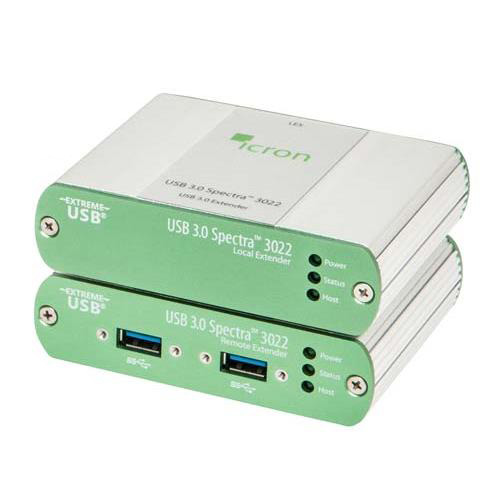

  • Picture of Icron USB 3.0 Spectra™ 3022 2-Port Multimode Fiber USB Extender (100m)
  • Picture of Icron USB 3.0 Spectra™ 3022 2-Port Multimode Fiber USB Extender (100m)
Picture of Icron USB 3.0 Spectra™ 3022 2-Port Multimode Fiber USB Extender (100m)
SKU ICR3022
Available to Ship Call us

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Please contact our customer service team for assistance in identifying the appropriate replacement part for your application.

Replaced By:


The USB 3.0 Spectra™ 3022 is a two port USB 3.0 SuperSpeed extension solution. USB 3.0’s distance is specified at 3 meters. When greater distances are required, consider the USB 3.0 Spectra 3022 which supports USB 3.0 5Gbps throughputs up to 100 meters over OM3 (50/125) multimode fiber optic cabling via the standard Duplex LC ports found on the LEX & REX units. A true plug-and-play solution, the Spectra 3022 is compatible with all leading operating systems. The Spectra 3022 features a locking power connector and two locking USB 3.0 ports delivering 900mA power to each port perfectly suited for USB3 Machine Vision camera applications, security cameras, and storage drives can be extended while providing isolation and security, and comes with a two year warranty.
UK, European and Australian power versions available. Contact your L-com Sales Representative for details.

L-com USB 3.0 Vision Cable Assemblies available (sold separately)

Features
  • AC power adapter at LEX and REX units provides 900mA for each USB port
  • Extend USB 3.0 up to 100m, Supports USB 3.1 throughputs of up to 5Gbps, USB3 Vision compliant (upon standard release)
  • Integrated 2-port hub with Rugged locking USB and power connectors Duplex Multimode LC port used for connecting LEX & REX units
  • Supports all major operating systems: Windows®, Mac OS X®, and Linux®3 L-com USB 3.0 Vision Cable Assemblies available (sold separately) </font>
  • True plug and play; no software drivers required

Application
  • Machine Vision camera extension
  • Post-production editing
  • Remote storage
  • Security camera extension
