2.4 / 4.9-5.8 GHz 13 dBi Dual Feed 180 Degree MIMO Sector Panel Antenna

SKU HG2458-13P-180
QTY available 69
Quantity Price
1 - 4 $785.00
5 - 9 $722.20
10 - 24 $659.40
25 + Call Us
Price $785.00

All Prices are in US Dollars and do not include duties



The HyperLink HG2458-13P-180 Sectorial Panel Antenna combines high gain with a 180 degree beamwidth. It is a professional quality cell-site antenna designed primarily for MIMO point-to-multipoint base station applications in the 2.4 GHz (2400-2500 MHz) and 5 GHz (4900-5850 MHz) frequency bands. The HG2458-13P-180 stands out from the competition since they are true 180 degree dual band sector antennas which feature patent pending technology.

The HG2458-13P-180 is actually two antennas in one. A 2.4 GHz antenna and a 4.9 GHz to 5.9 GHz antenna integrated into a single enclosure. Each internal antenna is fed via its own individual connector.

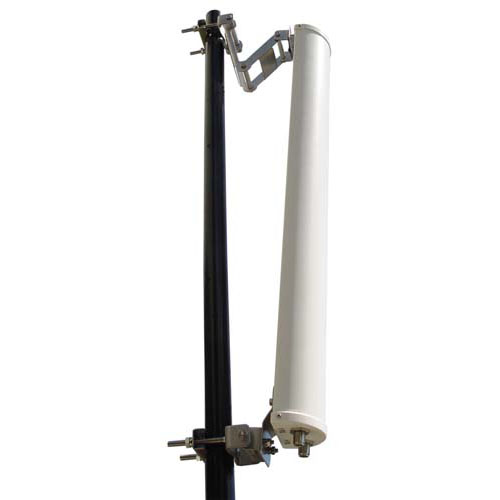

This antenna features a heavy-duty UV-resistant plastic radome for all-weather operation. The HG2458-13P-180 antenna is supplied with a stainless steel tilt and swivel mast mount kit. This allows installation at various degrees of up/down tilt for easy alignment.

For additional information and complete specifications, click on the data sheet in the Downloads tab.


Features
  • 180 degree dual band sector - patent pending technology
  • Dual band: 2.4 GHz and 4.9 GHz to 5.8 GHz
  • Dual feed via (2) Integral N-Female Connectors
  • MIMO - Multiple-Input and Multiple-Output
  • UV-resistant radome for all-weather operation

Application
  • WiMAX, WISP and WiFi, applications
  • 802.11a, 802.11b, 802.11g, 802.11 and 802.11ac access points and routers
  • Homeland Security and Public Safety Services: Fire, Police, Security
  • MIMO PtMP 1x2, 2x2 base station
  • Wireless Internet Provider "cell" sites


Product Resources

Key Specifications

Key Specifications

Antenna Type
Sector
Polarization
Vertical
Connector 1 Polarity
Standard
Connector Series
N
Connector Gender
Female
Impedance
50 Ohm
Maximum Input VSWR
1.7:1
