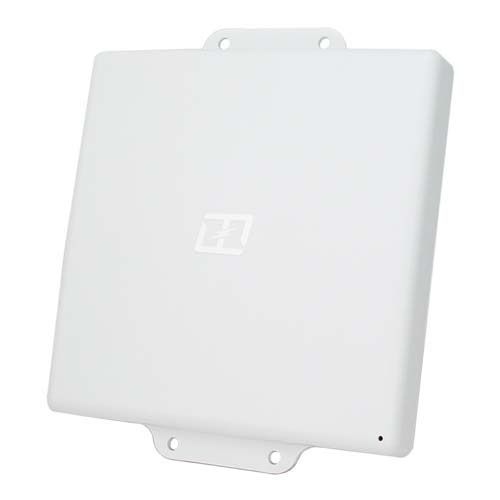

HyperLink Wireless Multi-Band 2.4/4.9-5.8 GHz Flat Panel Antenna Model: HG2458-11P

SKU HG2458-11P
QTY available 76
Quantity Price
1 - 9 $109.99
10 - 24 $101.19
25 - 99 $92.39
100 + Call Us
Price $109.99

All Prices are in US Dollars and do not include duties



The Hyperlink HG2458-11P is a high performance multi-band directional flat patch antenna suitable for indoor and outdoor applications in the 2.4GHz (2400-2500 MHz) and 4.9-5.8 GHz (4900-5850 MHz) band. The multi-band design of this antenna eliminates the need to purchase different antennas for each frequency. This simplifies installations since the same antenna can be used for a wide array of wireless applications.

The HG2458-11P is lightweight and features a durable aesthetic UV-stable, UL flame rated white plastic radome which can also be painted to match the room or building structure. Integral mounting flanges ease installation. In addition, the optional HGX-PMT06 can be purchased for mounting the HG2458-11P to 1.2" to 2" diameter masts. This mounting kit attaches directly to the back of the antenna.

Click on the Downloads tab for additional information and complete specifications.


Features
  • Durable UV-stable, UL flame rated radome with integral mounting flanges
  • Optional tilt-and-swivel pole mount kit available
  • 2.4 GHz and 4.9-5 GHz internal antennas coupled to a single feed
  • Multi-band operation: 2.4 GHz and 4.9 to 5.8 GHz
  • N-Female connector

Application
  • Homeland security and public safety services
  • Ideal for multi-band radios (802.11a/b/g/n)
  • 2.4 GHz and 5.8 GHz wireless video systems
  • 2.4/4.9/5.1/5.3/5.4/5.8 GHz Wireless LAN systems
  • IEEE 802.11a/b/g/n and 802.11ac applications


Product Resources

Key Specifications

Key Specifications

Antenna Type
Panel
Polarization
Vertical
Connector 1 Polarity
Standard
Connector Series
N
Connector Gender
Female
Impedance
50 Ohm
Maximum Input VSWR
2:1
