2.4/5 GHz 4/6 dBi Dual Band Omni-Directional MIMO Antenna - RP-TNC Plug

SKU HG245806U-4RTP
QTY available 107
Quantity Price
1 - 9 $229.99
10 - 24 $211.59
25 - 99 $193.19
100 + Call Us
Price $229.99

All Prices are in US Dollars and do not include duties

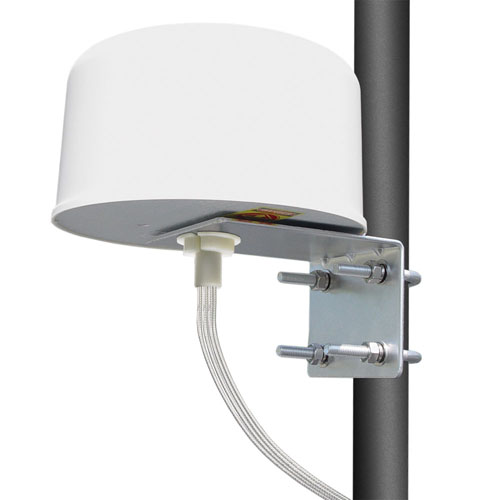

The HyperLink HG245806U-4RTP is a compact dual band omni-directional antenna specifically designed for MIMO (Multiple In / Multiple Out) applications.

Unlike typical pole style omni-directional antennas, the HG245806U-4RSP features a compact and unobtrusive UV resistant radome. Its modern design and aesthetics helps it blend into almost any environment or structure.

The HG245806U-4RTP operates on both 2.4 GHz and 5.8 GHz frequencies. It is ideal for use with 4x4 MIMO radios since the HG245806U-4RTP features four separate 3 foot antennas leads terminated with RP-TNC Plug connectors. Each lead is dual band and supports both 2.4 GHz and 5.8 GHz.

This antenna's construction features a durable UV resistant ABS radome for durability and ruggedness. Its mounting system features a heavy-duty mounting bracket and U-Bolts for superior strength.

For additional information and complete specifications, click on the data sheet in the Downloads tab.


Features
  • All weather operation
  • Dual frequency - 2.4 GHz & 5 GHz
  • Heavy duty steel mounting bracket
  • Compact design
  • Four dual band inputs via 3 foot antenna leads with RP-TNC Plug connectors

Application
  • Point-to-multipoint applications
  • 2x2, 3x3 and 4x4 MIMO applications
  • 4.9 GHz Homeland Security and Public Safety band
  • 5.8 GHz UNII and ISM applications
  • IEEE 802.11a/b/g/n and 802.11ac wireless networks


Product Resources

Key Specifications

Key Specifications

Antenna Type
Omni
Polarization
Vertical
Connector 1 Polarity
Reverse Polarity
Connector Series
TNC
Connector Gender
Plug
Impedance
50 Ohm
Maximum Input VSWR
1.5:1
