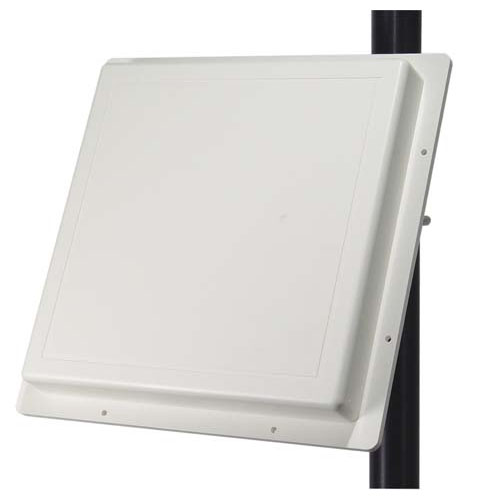

2.4 GHz 14 dBi Flat Panel Antenna - Integral N-Female Connector

SKU HG2414P
QTY available Call us
Quantity Price
1 - 24 $84.99
25 - 49 $76.49
50 - 99 $67.99
100 + Call Us
Price $84.99

All Prices are in US Dollars and do not include duties



HyperGain Flat Panel Antennas are high performance directional antenna products that are suitable for indoor and outdoor applications in the 2.4GHz ISM band. These directional antennas are designed for point to point and point to multipoint directional wireless applications.

Features
  • Can be installed for either vertical or horizontal polarization
  • Compact size, 8.5" Square with low-loss coax cable
  • Low-loss solid brass elements & DC Short lightning protection
  • Durable UV-stable, UL flame rated radome
  • Optional pigtails and mounting brackets available

Application
  • 2.4 GHz ISM Band
  • Bluetooth® & Public Wireless Hotspot
  • Directional antenna applications
  • IEEE 802.11b, 802.11g, 802.11n (Pre-N, Draft-N) Wireless LAN Applications
  • WiFi & Wireless Video Systems


Product Resources

Key Specifications

Key Specifications

Antenna Type
Panel
Polarization
Vertical or Horizontal
Connector 1 Polarity
Standard
Connector Series
N
Connector Gender
Female
Impedance
50 Ohm
Maximum Input VSWR
1.5:1
