2.4 GHz 15 dBi Yagi Antenna - 4ft N-Male Connector

SKU HG2415Y-NM
QTY available 247
Quantity Price
1 - 24 $131.99
25 - 49 $126.71
50 - 99 $122.75
100 + Call Us
Price $131.99

All Prices are in US Dollars and do not include duties



Superior Performance

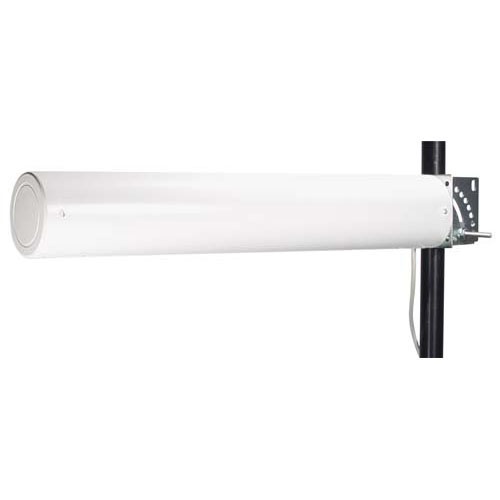

The HyperGain HG2415Y Radome Enclosed Yagi WiFi Antenna features high gain and a 30° beam-width. It is ideally suited for directional and multipoint IEEE 802.11b, 802.11g and 802.11n wireless LANs, Bluetooth®, public wireless hotspot applications and other systems operating in the 2.4GHz ISM band. The unique design of this antenna allows it to be installed for either vertical or horizontal polarization.

Rugged and Weatherproof
This WiFi antenna is enclosed within a UV-stable, UL flame rated radome for all-weather operation.The HG2415Y antenna is supplied with a 60 degree tilt and swivel mast mount kit.

Custom Connectors
If you need a custom connector for this antenna, please contact sales for connector options, prices and availability.

Features
  • 30° beam-width & DC Short lightning protection
  • 4ft low-loss coax lead terminated with a N-Male connector
  • Can be installed for either vertical or horizontal polarization
  • Includes tilt and swivel mast mount
  • Light weight, UV-stable & UL flame rated radome

Application
  • 2.4 GHz ISM Band
  • Directional and multipoint applications
  • IEEE 802.11b, 802.11g &IEEE 802.11n Wireless LAN
  • WiFi & wireless video systems
  • Bluetooth® & public wireless hotspot


Product Resources

Key Specifications

Key Specifications

Antenna Type
Yagi
Polarization
Vertical or Horizontal
Connector 1 Polarity
Standard
Connector Series
N
Connector Gender
Male
Impedance
50 Ohm
Maximum Input VSWR
1.5:1
