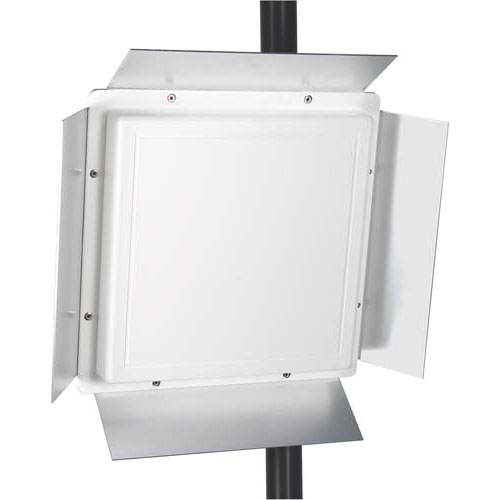

2.4 GHz 15.5 dBi Flat Panel Antenna - Integral N-Female Connector

SKU HG2416P
QTY available 11
Quantity Price
1 - 24 $109.99
25 - 49 $98.99
50 - 99 $87.99
100 + Call Us
Price $109.99

All Prices are in US Dollars and do not include duties



The HG2419P is a high gain flat panel antenna designed specifically for IEEE 802.11b/g/n applications in the 2.4GHz ISM band. It offers superior performance in a compact and easy to install package. This antenna's innovative reflector system provides excellent front-to-back ratio, significantly reducing background noise and interference.

This antenna is ideal for use at subscriber sites, and offers a cost-effective CPE (Customer Premise Equipment) solution. It is also suitable for small base station "micro-cell" sites.

It's unique design offers a 30% lower profile than similar RF antennas from other vendors, offering a more compact alternative to Yagi or grid antennas for medium range point-to-point links.

The HG2416P antenna is supplied with a 60 degree tilt and swivel mast mount kit.

For additional information and complete specifications, click on the data sheet link.


Features
  • Low-loss solid brass elements & DC Short lightning protection
  • Can be installed for either vertical or horizontal polarization
  • Durable UV-stable, UL flame rated radome
  • Excellent front-to-back ratio
  • Includes tilt and swivel mast mount hardware

Application
  • Bluetooth® & Public Wireless Hotspot
  • Directional antenna applications
  • 2.4 GHz ISM Band
  • IEEE 802.11b, 802.11g, 802.11n (Pre-N, Draft-N) Wireless LAN Applications
  • WiFi & Wireless Video Systems


Product Resources

Key Specifications

Key Specifications

Antenna Type
Panel
Polarization
Vertical or Horizontal
Connector 1 Polarity
Standard
Connector Series
N
Connector Gender
Female
Impedance
50 Ohm
Maximum Input VSWR
1.5:1
