2.4 GHz 2 dBi Rubber Duck Antenna - RIGID RP-SMA Plug Connector

SKU HG2402RDR-RSP
QTY available 333
Quantity Price
1 - 24 $14.39
25 - 49 $12.95
50 - 99 $11.51
100 + Call Us
Price $14.39

All Prices are in US Dollars and do not include duties

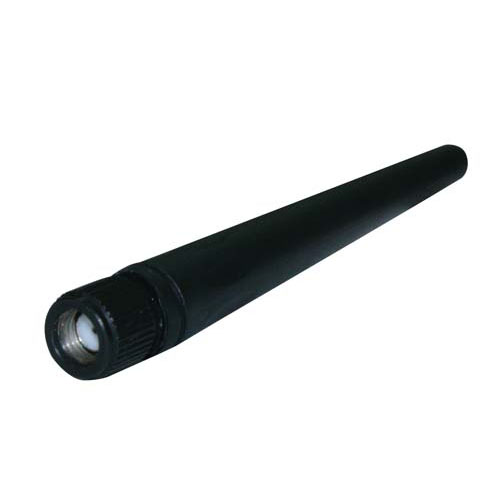

This compact 2.4 GHz Omni-directional "Rubber-Duck" WiFi antenna provides broad coverage and 2 dBi gain. It is a coaxial sleeve design with an Omni-directional pattern. It is ideally suited for IEEE 802.11b and 802.11g wireless LANs, Bluetooth® and other WLAN applications.

Only 3.13" long, this flexible antenna features a rigid reverse-polarity SMA plug connector for rigid upright installations on equipment. It is suitable as a replacement antenna for many access points and wireless equipment that feature reverse-polarity SMA connectors. The connector is crimped and soldered for excellent performance and low loss (Note this RF antenna is used as a "replacement" or "OEM" antenna rather than a "range extender" antenna). The antenna will achieve excellent range in most installations when the antenna is vertically positioned.

For additional information and complete specifications, click on the data sheet link below.


Features
  • High Performance - 2 dBi
  • Flexible "Rubber Duck" antenna
  • Optional Magnetic Mount Available
  • RIGID RP-SMA Plug Connector

Application
  • Multipoint and Mobile Applications & Bluetooth®
  • 2.4 GHz ISM Band
  • IEEE 802.11b, 802.11g Wireless LAN & IEEE 802.11n (Pre-N, Draft-N) Applications
  • Public Wireless Hotspot
  • Wireless Video Systems


Product Resources

Key Specifications

Key Specifications

Antenna Type
Rubber Duck
Polarization
Vertical
Connector 1 Polarity
Standard
Connector Series
SMA
Connector Gender
Plug
Impedance
50 Ohm
Maximum Input VSWR
2:1
