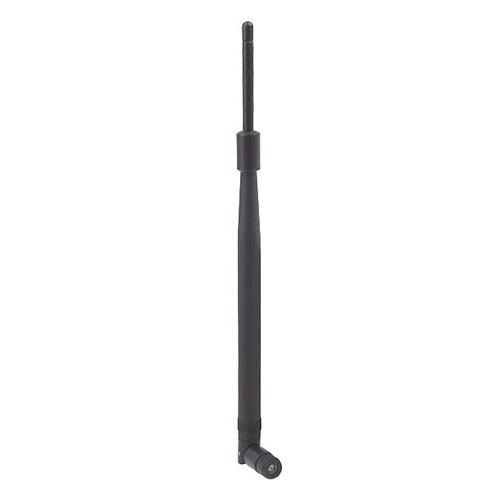

2.4 GHz 7 dBi Rubber Duck Antenna - SMA Male Connector

  • Picture of 2.4 GHz 7 dBi Rubber Duck Antenna - SMA Male Connector
  • Picture of 2.4 GHz 7 dBi Rubber Duck Antenna - SMA Male Connector
Picture of 2.4 GHz 7 dBi Rubber Duck Antenna - SMA Male Connector
SKU HG2407RD-SM
Available to Ship Call us

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Please contact our customer service team for assistance in identifying the appropriate replacement part for your application.

Replaced By:


This high performance 2.4 GHz omnidirectional "rubber-duck" WiFi antenna provides broad coverage and 7 dBi gain. It is a coaxial sleeve design with an omni-directional pattern. It is ideally suited for IEEE 802.11b, 802.11g and 802.11n wireless LANs, Bluetooth® and other WLAN applications.

Measuring 13" long, this flexible antenna features a tilt-and-swivel SMA-Male connector, allowing them to be used vertically, at a right angle, or any angle in-between. It is suitable as a replacement RF antenna for many access points and radios that are equipped with SMA connectors including FreeWave®, Senao®, Trapeze Networks™ and others.

Features
  • Better performance than most stock AP antennas
  • Flexible "Rubber Duck" antenna
  • High Performance - 7 dBi
  • SMA-Male Connector
  • Tilt and swivel design

Application
  • 2.4 GHz ISM Band
  • Wireless Video Systems
  • IEEE 802.11b, 802.11g Wireless LAN & IEEE 802.11n (Pre-N, Draft-N) Applications
  • Multipoint and Mobile Applications & Bluetooth®
  • Public Wireless Hotspot


Product Resources

Key Specifications

Key Specifications

Antenna Type
Rubber Duck
Polarization
Vertical
Connector 1 Polarity
Standard
Connector Series
SMA
Connector Gender
Male
Impedance
50 Ohm
Maximum Input VSWR
2:1

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
