HyperLink Wireless 2.4 GHz 8.5 dBi Omnidirectional Wireless LAN Antenna

SKU HG2409U
QTY available 651
Quantity Price
1 - 24 $105.99
25 - 49 $100.69
50 - 99 $95.39
100 + Call Us
Price $105.99

All Prices are in US Dollars and do not include duties

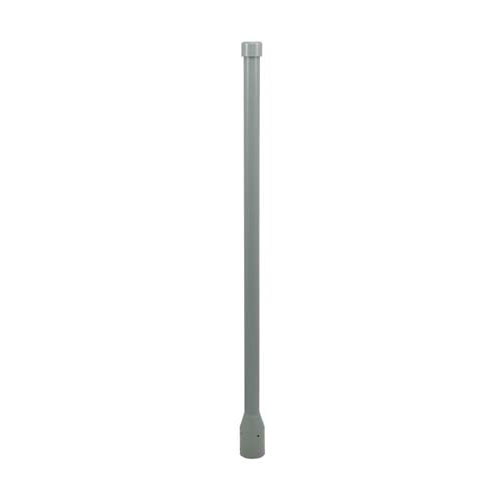

The HyperGain HG2409U is a high performance omnidirectional WiFi antenna designed for the 2.4 GHz ISM band and 2.36 GHz CDMA band. This compact and lightweight antenna is ideally suited for IEEE 802.11b, 802.11g and 802.11n wireless LANs, public wireless hotspots, Bluetooth® and other multipoint and mobile applications where high gain and wide coverage is desired. Constructed for all weather operation, the HG2409U features sealed collinear brass elements inside a durable UV-stable machine gray fiberglass radome. A vented end cap and drain holes in the base help prevent moisture build-up inside the antenna. These features allow the HG2409U to be mounted in up or down positions. Optional HMA3 Domed Magnetic Mount. 2-5/8 Inch Diameter Base (66.8mm).

Features
  • Superior Performance
  • Compact, Lightweight Design
  • Durable UV-stable Fiberglass Radome
  • Vented End Cap and Drain Holes in Base
  • All Weather Operation
  • Integral N-Male Connector
  • Can Be Installed in Up or Down Positions
  • Optional Antenna Mounts Available
  • RoHS Compliant

Application
  • 2.4 GHz ISM Band
  • 2.36GHz CDMA Band
  • IEEE 802.11b and 802.11g Wireless LAN
  • Bluetooth
  • Public Wireless Hotspot
  • WiFi
  • Multipoint and Mobile Applications


Product Resources

Key Specifications

Key Specifications

Antenna Type
Omni
Polarization
Vertical
Minimum Frequency
2.36 GHz
Maximum Frequency
2.5 GHz
Connector 1 Polarity
Standard
Connector Series
N
Connector Gender
Male
Impedance
50 Ohm
Maximum Input VSWR
2:1
