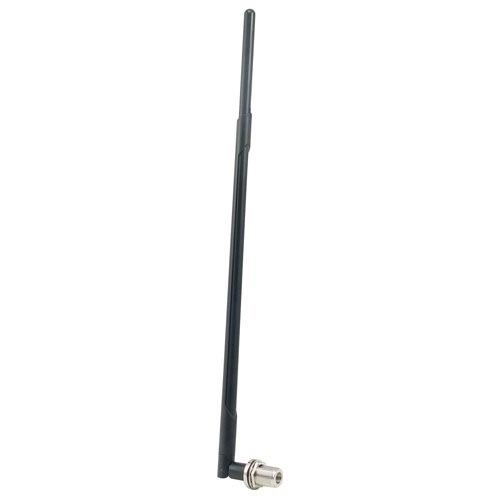

2.4 GHz 9 dBi Rubber Duck Antenna - N-Female Bulkhead Connector

  • Picture of 2.4 GHz 9 dBi Rubber Duck Antenna - N-Female Bulkhead Connector
  • Picture of 2.4 GHz 9 dBi Rubber Duck Antenna - N-Female Bulkhead Connector
Picture of 2.4 GHz 9 dBi Rubber Duck Antenna - N-Female Bulkhead Connector
SKU HG2409RD-NFB
Available to Ship Call us

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Please contact our customer service team for assistance in identifying the appropriate replacement part for your application.

Replaced By:


HyperGain "Rubber-Duck" Wireless LAN antennas provide broad coverage with an omni-directional pattern. All antennas feature tilt-and-swivel connectors and are available in models ranging from 1 dBi to 9 dBi.

Features
  • Flexible "Rubber Duck" antenna
  • Better performance than most stock AP antennas
  • High Performance - 9 dBi
  • N-Female Bulkhead Connector
  • Tilt and swivel design

Application
  • 2.4 GHz ISM Band
  • IEEE 802.11b, 802.11g Wireless LAN & IEEE 802.11n (Pre-N, Draft-N) Applications
  • Multipoint and Mobile Applications & Bluetooth®
  • Public Wireless Hotspot
  • Wireless Video Systems


Product Resources

Key Specifications

Key Specifications

Antenna Type
Rubber Duck
Polarization
Vertical
Connector 1 Polarity
Standard
Connector Series
N
Connector Gender
Female
Impedance
50 Ohm
Maximum Input VSWR
1.5:1

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
