4.9-5.8 GHz 90° 17 dBi Dual Polarized / Dual Feed MIMO Sector Antenna

SKU HG4958-17DP-090
QTY available 99
Quantity Price
1 - 9 $251.99
10 - 24 $241.91
25 - 99 $231.83
100 + Call Us
Price $251.99

All Prices are in US Dollars and do not include duties



The HyperLink HG4958-17DP-090 Sectorial Panel Antenna combines vertical and horizontal polarization with high gain over a broadband frequency in a single enclosure. It is a professional quality cell-site antenna designed primarily for MIMO point-to-multipoint base station applications in the 4.9 GHz to 5.8GHz frequency bands.

This antenna incorporates advanced dual polarization technology that allows for the interoperability of two radio transmit and receive paths. This technology allows for the attenuation of unwanted signals from adjacent channels and/or co-located equipment.

Rugged and Weatherproof

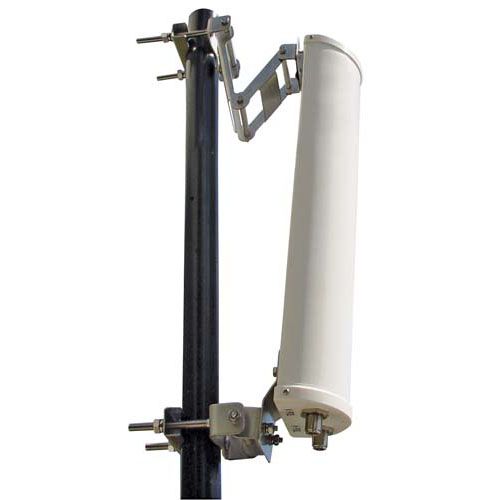

This antenna features a heavy-duty UV-resistant plastic radome for all-weather operation. The HG4958-17DP-090 antenna is supplied with a stainless steel tilt and swivel mast mount kit. This allows installation at various degrees of up/down tilt for easy alignment.

This antenna makes an ideal alternative to the Ubiquiti AirMax Sector 5G-17-90 antenna.

For additional information and complete specifications, click on data sheet link below.


Features
  • MIMO - Multiple-Input and Multiple-Output
  • Two integral N-Female connectors
  • UV-resistant radome for all-weather operation
  • Dual Polarity feed system in single enclosure
  • Includes stainless steel mounting hardware

Application
  • 4.9/5.1/5.3/5.4/5.8 GHz Wireless LAN systems
  • Homeland Security and Public Safety band
  • MIMO PtMP 1x2, 2x2 base station
  • Supports IEEE 802.11 a/n applications
  • WiMAX, WISP, WiFi, Mobile Communication, Cell-site


Product Resources

Key Specifications

Key Specifications

Antenna Type
Sector
Polarization
Vertical or Horizontal
Connector 1 Polarity
Standard
Connector Series
N
Connector Gender
Female
Impedance
50 Ohm
Maximum Input VSWR
1.7:1
