5.8 GHz 17 dBi 90 Degree Sector Panel WLAN Antenna

SKU HG5817P-090
QTY available 48
Quantity Price
1 - 9 $325.99
10 - 24 $299.91
25 - 99 $273.83
100 + Call Us
Price $325.99

All Prices are in US Dollars and do not include duties

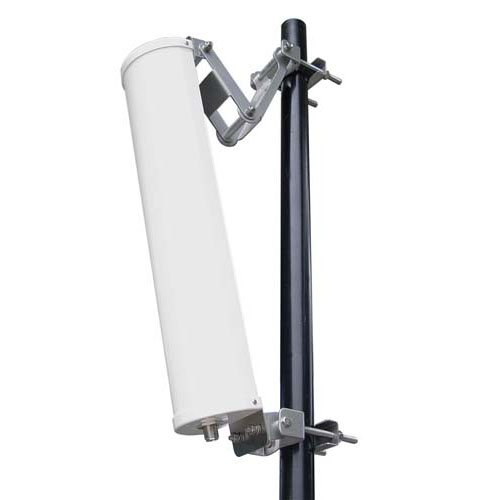

The HyperLink HG5817P-090 Sector Panel WiFi Antenna combines high gain with a wide 90° beam-width. It is a professional quality cell site antenna designed primarily for service providers in the 5.8GHz ISM and UNII band.

This antenna features a heavy-duty plastic radome for all-weather operation. The HG5817P antenna is supplied with a tilt and swivel mast mount kit. This allows installation at various degrees of incline for easy alignment.

Ideal for Wireless Internet "Cell" Sites- -This RF antenna is an ideal choice for Wireless Internet Provider "cell" sites since the cell size can be easily determined by adjusting the down-tilt angle. Horizontal coverage is a full 90 degrees.


Features
  • 17 dBi 90 Degree Sector Panel
  • DC Ground lightning protection
  • Integral N-Female Connector
  • Supplied with a tilt and swivel mast mount kit

Application
  • 5.8GHz Wireless LAN systems
  • 5.8GHz ISM applications
  • 5.8GHz UNII applications
  • WiFi Systems & Wireless Video Systems
  • Wireless Internet Provider "cell" sites


Product Resources

Key Specifications

Key Specifications

Antenna Type
Sector
Polarization
Vertical
Connector 1 Polarity
Standard
Connector Series
N
Connector Gender
Female
Impedance
50 Ohm
Maximum Input VSWR
1.5:1
