698-960/1710-2700 MHz 90 Degree Sector DAS Antenna - N-Female

SKU HG72714P-090
QTY available 1
Quantity Price
1 - 4 $790.00
5 - 9 $726.80
10 - 24 $663.60
25 + Call Us
Price $790.00

All Prices are in US Dollars and do not include duties

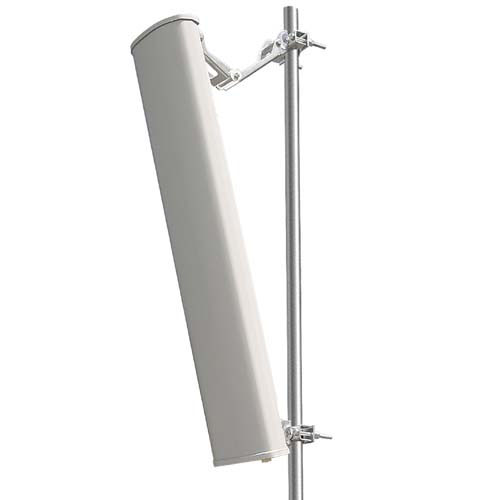

The HyperLink HG72714P-090 is a professional grade 90 degree sector panel antenna specifically designed for DAS (Distributed Antenna Systems). It is ideal for LPWAN/IoT/M2M apllications such as LoRA, LTE-M and NB-IoT. This outdoor all weather antenna helps wireless carriers to quickly increase capacity as well as deploy new spectrum in zoning challenged locations. The HG72714P-090 combines several different frequency bands to allow multi-user options. Applications for the HG72714P-090 include:
  • Densely populated urban areas
  • Educational campuses
  • Resorts and theme parks
  • Parks and nature centers
Rugged and Weatherproof

This antenna's construction features a durable UV resistant PVC radome for durability and aesthetics. Its mounting system features heavy-duty up/down tilt mounting brackets. This allows installation at various degrees of incline for easy alignment.

Single Antenna Feed

The HG72714P-090 features a single N-Female connector due to the antenna's internal combiner. This simplifies installation since only one coax cable is required to be sent to the antenna.

Click on the Downloads tab for additional information and complete specifications.


Features
  • All weather operation
  • Frequency coverage for 700 MHz, 850 MHz, AWS and PCS bands
  • Internal combiner eliminates the need for separate coax cables for each frequency
  • Heavy duty steel mounting brackets
  • Integral N-Female connector

Application
  • LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M applications
  • Cellular networks
  • DAS (Distributed Antenna Systems)
  • IEEE 802.11b/g WiFi applications
  • Public safety


Product Resources

Key Specifications

Key Specifications

Antenna Type
Sector
Polarization
Vertical
Connector 1 Polarity
Standard
Connector Series
N
Connector Gender
Female
Impedance
50 Ohm
Nominal Gain
13 dBi
Maximum Input VSWR
1.6:1
