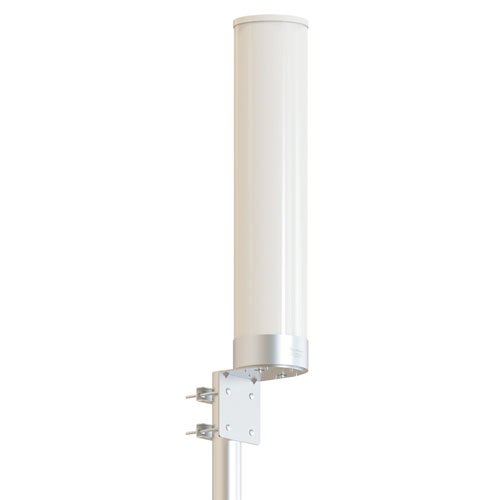

800/900 MHz 10 dBi Dual Slant Polarization Omni antenna N-female

  • Picture of 800/900 MHz 10 dBi Dual Slant Polarization Omni antenna N-female
Picture of 800/900 MHz 10 dBi Dual Slant Polarization Omni antenna N-female
SKU HG9010DPU
Available to Ship Call us
Quantity Price
1 - 4 $1,310.00
5 - 9 $1,257.60
10 - 24 $1,205.20
25 + Call Us
Price $1,310.00

All Prices are in US Dollars and do not include duties



Dual-port omnidirectional antenna for 900 MHz point to multipoint applications. This antenna provides high performance for a variety of wireless applications in the 900 MHz band incuding WLAN, WPLAN, IoT, M2M and cellular.

Features
  • 1 degree electrical down tilt
  • Dual slant polarization (±45°)
  • Heavy duty steel mounting bracket
  • High gain (10 dBi) 900 MHz dual port omni
  • Integral N-female connectors

Application
  • Oudoor installations
  • Point-to-multipoint
  • WLAN, LPLAN, SCADA, IoT, M2M, cellular, MIMO


Product Resources

Key Specifications

Key Specifications

Polarization
Vertical/Horizontal
Minimum Frequency
824 MHz
Maximum Frequency
928 MHz
Connector 1 Polarity
Standard
Connector Series
N
Connector Gender
Female
Impedance
50 Ohm
Maximum Input VSWR
1.7:1

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
