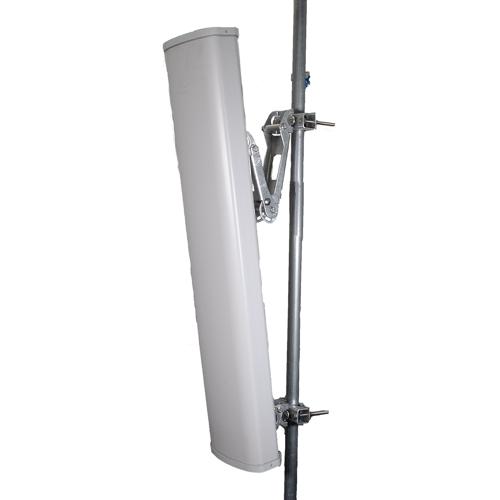

900 MHz 13 dBi 120 Degree Sector Panel Antenna

SKU HG913P-120
QTY available 13
Quantity Price
1 - 4 $560.00
5 - 9 $515.20
10 - 24 $470.40
25 + Call Us
Price $560.00

All Prices are in US Dollars and do not include duties



The HyperLink HG913P-120 Sector Panel Antenna provides 13 dBi gain with a wide 120° beam-width. It is a professional quality "cell site" antenna designed primarily for service providers in the 900MHz band. It is ideally suited for 900MHz ISM and GSM bands. Typical applications include 900MHz Wireless LAN, SCADA, LPWAN, LoRA, IoT, M2M, and 900MHz Cellular.

Rugged and Weatherproof

This antenna features a heavy-duty plastic radome for all-weather operation. The mounting system adjusts from 0 to 18 degrees down tilt.

Ideal for 900 MHz Wireless Service Provider "Cell" Sites

This sector antenna is an ideal choice for Wireless Service Internet Provider "cell" sites since the cell size can be easily determined by adjusting the down-tilt angle. The 120° beam-width is ideal for covering large service areas.

For additional information and complete specifications, click on the data sheet link below.


Features
  • 20° Down-Tilt Mounting Bracket
  • Includes Mast Mounting Hardware
  • Integral N-Female Connector
  • Vertical Polarized
  • All weather operation

Application
  • 900 MHz ISM/GSM
  • LPWAN, LoRA, IoT, M2M
  • RFID
  • SCADA
  • ZigBee


Product Resources

Key Specifications

Key Specifications

Antenna Type
Sector
Polarization
Vertical
Connector 1 Polarity
Standard
Connector Series
N
Connector Gender
Female
Impedance
50 Ohm
Maximum Input VSWR
1.5:1
