L-com

900 MHz 14 dBi Heavy-Duty Yagi Antenna N Female Connector

SKU HG914Y-NF
QTY available Call us

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Please contact our customer service team for assistance in identifying the appropriate replacement part for your application.

Replaced By: HG913Y-NF

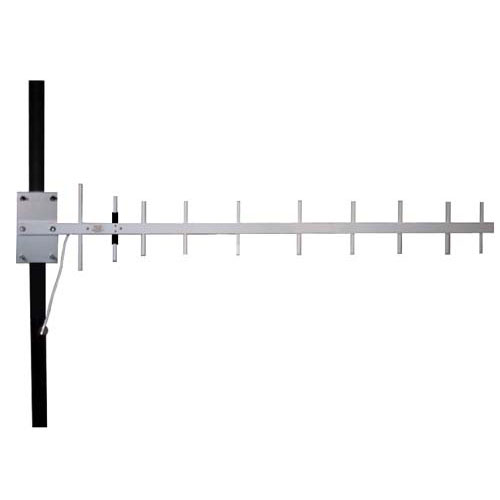

The HyperGain HG914Y High-Performance Yagi Antenna combines high gain with a wide 30° beam-width. It is ideally suited for directional applications in the 900 GHz ISM and GSM bands as well as Non Line of Sight (NLOS) and Point to Multi-Point installations. Typical applications include 900 MHz Wireless LAN, SCADA, LPWAN, LoRA, IoT, M2M, and 900 MHz Cellular.

This antenna features a heavy-duty 3/4" aluminum boom and solid 3/8" aluminum elements. Secure mounting is assured by a solid 1/4" aluminum mounting plate and two stainless steel V-bolts.

Custom Connectors
If you need a custom connector for this antenna, please contact sales for connector options, prices and availability.

Features
  • 30° beam-width
  • Heavy-duty 3/4" aluminum boom
  • Solid 3/8" aluminum elements
  • Superior performance
  • Solid 1/4" aluminum mounting plate

Application
  • 900MHz ISM Band & 900 MHz Cellular
  • LPWAN, LoRA, IoT, M2M
  • Wireless LAN systems & Point to Multipoint applications
  • Non Line of Sight (NLOS)
  • RFID & SCADA

Key Specifications

Key Specifications

Antenna Type
Yagi
Polarization
Vertical or Horizontal
Connector 1 Polarity
Standard
Connector Series
N
Connector Gender
Female
Impedance
50 Ohm
Maximum Input VSWR
1.5:1
