900 MHz 8 dBi RH Circular Polarized Patch Antenna- 4ft RP-SMA Plug Connector

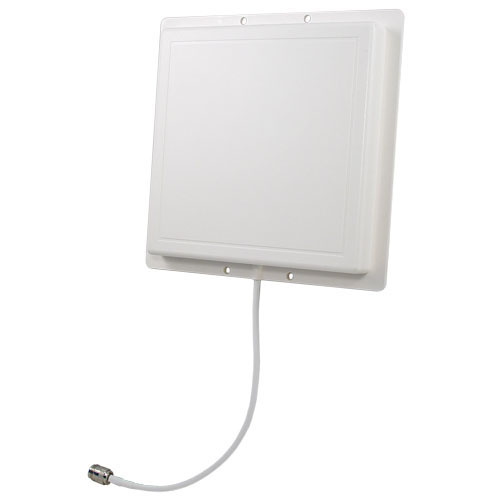

  • Picture of 900 MHz 8 dBi RH Circular Polarized Patch Antenna- 4ft RP-SMA Plug Connector
  • Picture of 900 MHz 8 dBi RH Circular Polarized Patch Antenna- 4ft RP-SMA Plug Connector
Picture of 900 MHz 8 dBi RH Circular Polarized Patch Antenna- 4ft RP-SMA Plug Connector
SKU HG908PCR-RSP
Available to Ship Call us
Quantity Price
1 - 9 $137.99
10 - 24 $132.47
25 - 99 $126.95
100 + Call Us
Price $137.99

All Prices are in US Dollars and do not include duties



The Hyperlink model HG908PCR series are high performance right hand circular polarized wall mount panel antennas designed to operate in the 900 MHz (860-960 MHz) band. These antennas feature circular polarization which makes them ideal for RFID applications. Compact and low profile, the HG908PCR antennas feature 8dBi of gain with a 65° beam width.

Left-Hand versions are also available, the HG908PCL series.


Features
  • 4 ft coax lead with RP-SMA Plug Connector
  • Right Hand Circular Polarized
  • Compact size, low profile
  • Lightweight ABS Radome

Application
  • LPWAN, LoRA, IoT, M2M applications
  • 800 MHz, 900 MHz ISM Band Applications
  • 900 MHz Cellular
  • RFID, GSM , Scada
  • Wireless Video Links


Product Resources

Key Specifications

Key Specifications

Antenna Type
Panel
Polarization
RHCP
Connector 1 Polarity
Reverse Polarity
Connector Series
SMA
Connector Gender
Plug
Impedance
50 Ohm
Maximum Input VSWR
1.5:1

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
