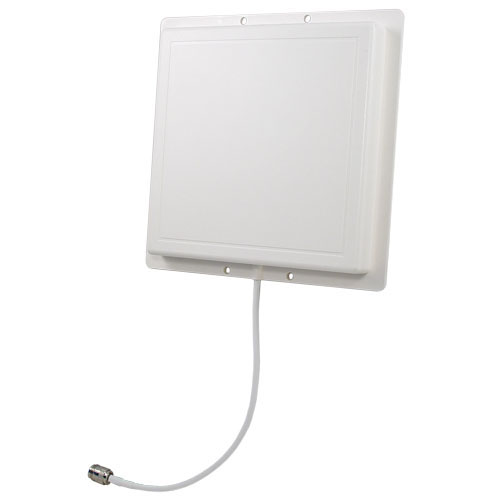

900 MHz 8 dBi RH Circular Polarized Patch Antenna- 4ft SMA Male Connector

  • Picture of 900 MHz 8 dBi RH Circular Polarized Patch Antenna- 4ft SMA Male Connector
  • Picture of 900 MHz 8 dBi RH Circular Polarized Patch Antenna- 4ft SMA Male Connector
Picture of 900 MHz 8 dBi RH Circular Polarized Patch Antenna- 4ft SMA Male Connector
SKU HG908PCR-SM
Available to Ship Call us
Quantity Price
1 - 24 $129.99
25 - 49 $124.79
50 - 99 $120.89
100 + Call Us
Price $129.99

All Prices are in US Dollars and do not include duties



The Hyperlink model HG908PCR series are high performance right hand circular polarized wall mount panel antennas designed to operate in the 900 MHz (860-960 MHz) band. These antennas feature circular polarization which makes them ideal for RFID applications. Compact and low profile, the HG908PCR antennas feature 8dBi of gain with a 65° beam width.

Left-Hand versions are also available, the HG908PCL series.


Features
  • 4 ft coax lead with SMA-Male Connector
  • Compact size, low profile
  • Lightweight ABS Radome
  • Right Hand Circular Polarized

Application
  • 900 MHz Cellular
  • 900 MHz ISM Band Applications
  • Wireless Video Links
  • LPWAN, LoRA, IoT, M2M applications
  • RFID, GSM , Scada


Product Resources

Key Specifications

Key Specifications

Antenna Type
Panel
Polarization
RHCP
Connector 1 Polarity
Standard
Connector Series
SMA
Connector Gender
Male
Impedance
50 Ohm
Maximum Input VSWR
1.5:1

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
