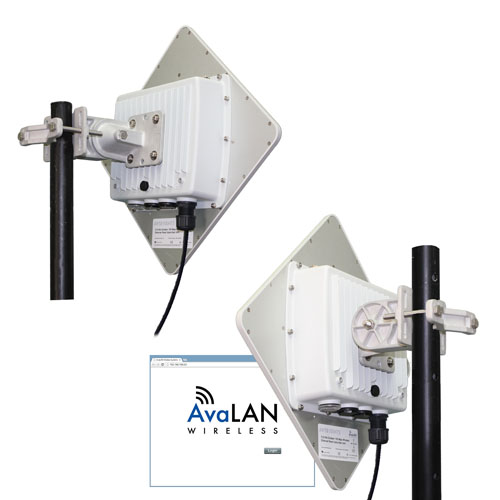

The AW58100HTP-PAIR high speed Ethernet bridge provides a point-to-point line of sight connection to link a "fringe" IP device such as a video surveillance camera that needs robust and secure high data rates. Utilizing state of the art MIMO technology, this product achieves very high data rate through a combination of multiple spacial streams and higher level OFDM modulation.
The antenna in each radio is a dual flat panel providing two 90° polarized 23 dBi gain units. The radios are packaged in rugged and weatherproof diecast aluminum enclosures and are powered through the Ethernet cable to save additional wiring. Rugged pole-mount adapters are provided and the two radios are pre-configured and ready to use as a transparent Ethernet cable extension with up to a 30 mile range.
For complete product specifications and manuals, click on the Downloads tab.
Features
- Line-of-sight range up to 30 miles for AW58100HTP-PAIR, 5 miles for HTA/HTS point-to-point configuration
- Maximum legal transmit power – 1 Watt
- Up to 60 Mbps Ethernet data rate to support high resolution cameras
- Includes: (1) AW58100HTP-AP High Power Access Point Radio (1) AW58100HTP-SU High Power Subscriber Unit Radio (2) AW-POE18i Power Over Ethernet Injectors with integrated power supplies
- Rugged outdoor enclosure meets IP66 Standard
