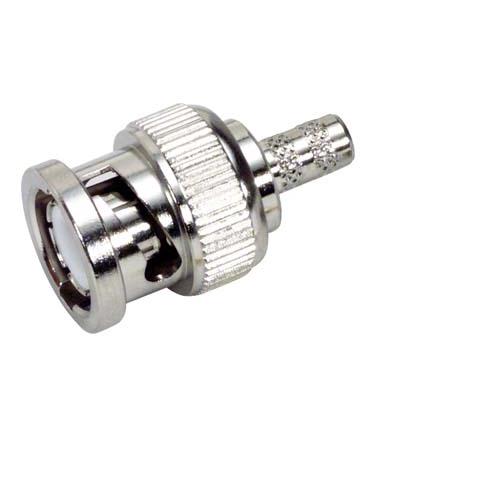

50 Ohm BNC Crimp Plug for Belden 7807 Cable

SKU HPC782
QTY available Call us
Quantity Price
1 - 24 $2.39
25 - 49 $2.27
50 - 99 $2.15
100 + Call Us
Price $2.39

All Prices are in US Dollars and do not include duties



This male BNC connector is designed for crimp attachment to Belden 7807 style coaxial cable utilizing a standard crimp size of .213" for the crimp ferrule. The contact pin is designed for solder attachment to the cable center conductor. BNC connectors connect with a twist lock, making them popular for RF applications.

Features
  • Crimp style attachment for a robust assembly
  • BNC male for Belden 7807 coaxial cable
  • Common size hex crimp allows quick and easy crimping
  • Gold plated contact pins to minimize signal loss
  • Three piece design simplifies assembly process

Application
  • Coaxial cable assembly
  • OEM applications
  • Premise wiring


Product Resources

Key Specifications

Key Specifications

Polarity
Standard
Connector Series
BNC
Connector Gender
Male
Impedance
50 Ohm
Body Style
Straight
Mount Method
None
Interface Type 1
Belden 7807
