50 Ohm BNC Female Bulkhead- Crimp Jack for RG58C/U Cable

SKU BAC522
QTY available 1146
Quantity Price
1 - 24 $12.59
25 - 49 $11.96
50 - 99 $11.33
100 + Call Us
Price $12.59

All Prices are in US Dollars and do not include duties

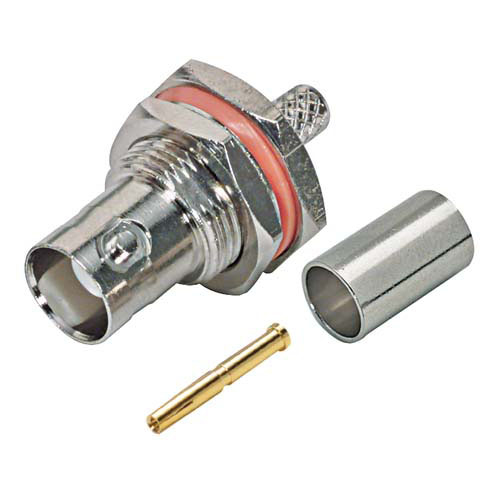

This BNC female bulkhead connector has been specifically designed for a crimp on style attachment to RG58C/U cable. The connector body and bulkhead nut are machined and nickel plated for superior corrosion resistance and durability. Gold plating is utilized on the center pin for low contact resistance. A silicone rubber O-Ring is also supplied for moisture resistance.

Features
  • Bayonet style 50 Ohm interface for quick mating
  • BNC style interfaces are widely used in WAN/LAN and Instrumentation applications
  • Commonly found .100 pin and .319 ferrule crimp sizes
  • Crimp style attachment results in robust connector to cable attachment
  • Standard bulkhead .5 inch single D mounting hole

Application
  • MDF/IDF
  • Coaxial cable patching
  • Coaxial OEM applications


Product Resources

Key Specifications

Key Specifications

Polarity
Standard
Connector Series
BNC
Connector Gender
Female
Impedance
50 Ohm
Body Style
Straight
Mount Method
Bulkhead
Interface Type 1
RG58
