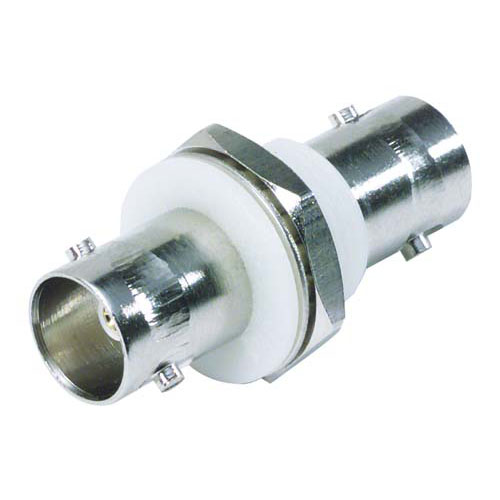

75 Ohm Coaxial Adapter, BNC F / Bulkhead, Acetal Mnt. Flange

SKU BA039
QTY available 1255
Quantity Price
1 - 24 $14.59
25 - 49 $13.86
50 - 99 $13.13
100 + Call Us
Price $14.59

All Prices are in US Dollars and do not include duties



This 75 Ohm insulated BNC female to female feed thru bulkhead coupler provides the ability to pass a coaxial connection through a panel or bulkhead utilizing a standard .470" single D mounting hole with the additional feature of providing a non conductive mounting surface to reduce ground loop problems.

Features
  • Complete with nut and lockwasher mounting hardware
  • Acetal mounting flange and threaded barrel provide insulation from panel
  • Gold plated center contact for reduced signal loss
  • Nickel plated body for enhanced corrosion resistance
  • Provides 75 Ohm signal feed-thru for two BNC male interface devices

Application
  • Coax retrofit applications
  • Coaxial Extension
  • Coaxial interface conversion
  • OEM coax applications
