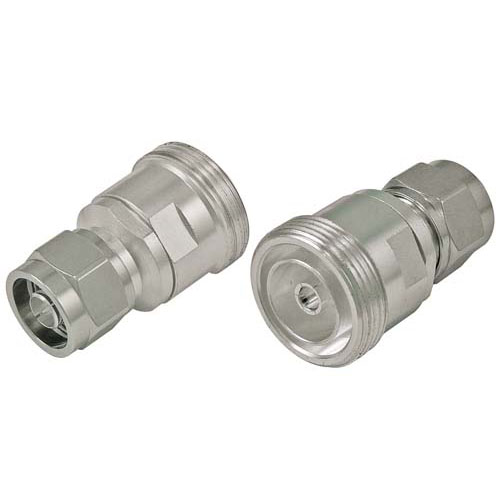

Coaxial Adapter, N-Male / 7/16 DIN Female

SKU AXA-NMDF
QTY available 27
Quantity Price
1 - 9 $107.99
10 - 24 $99.35
25 - 99 $90.71
100 + Call Us
Price $107.99

All Prices are in US Dollars and do not include duties



This N-Male to 7/16 DIN Female coaxial adapter provides the ability to connect between a N-Female and 7/16 DIN Male interface. The silver plated body helps ensure durability and long life in the field.

Features
  • Adapters utilize machined components for durability and long life
  • Allows interconnection of devices with N-Female and 7/16 DIN Male interfaces
  • Silver plated adapter body
  • Coax retrofit applications

Application
  • Coax retrofit applications
  • Coaxial extension
  • Coaxial interface conversion
  • OEM coax applications


Product Resources

Key Specifications

Key Specifications

Connector Series 1
N
Connector Gender 1
Male
Connector Polarity 1
Standard
Connector Impedance 1
50 Ohm
Connector Series 2
7/16 DIN
Connector Gender 2
Female
Connector Polarity 2
Standard
Connector Impedance 2
50 Ohm
Frequency, Min
DC
Frequency, Max
6 GHz
Adapter Body Style
Straight
Connector Mount Method 1
None
Connector Body Material 1
Brass
Connector Body Plating 1
Silver
Connector Mount Method 2
None
Connector Body Material 2
Brass
Connector Body Plating 2
Nickel
