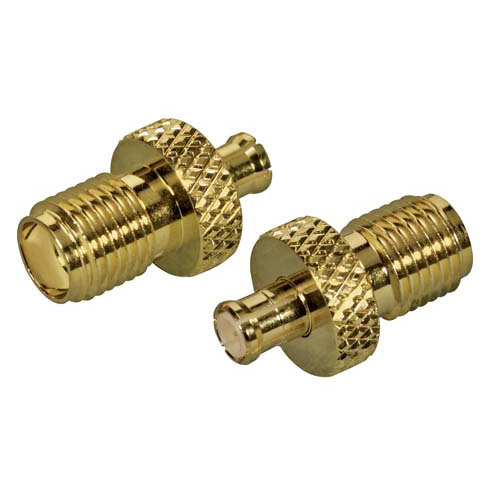

Coaxial Adapter, SMA Female / MCX Plug

SKU AXA-MPSF
QTY available 240
Quantity Price
1 - 24 $16.19
25 - 49 $14.57
50 - 99 $12.95
100 + Call Us
Price $16.19

All Prices are in US Dollars and do not include duties



L-com's SMA Female to MCX Plug adapter will adapt SMA to MCX interfaces. Each adapter is constructed of the highest quality materials. These adapters come in handy when connecting unlike cables and equipment. Order online today.

Features
  • Allows interconnection of devices with MCX Jack and SMA Male interfaces
  • Gold plated center contact for reduced signal loss
  • Handy device to have on hand to solve your interconnection problems
  • Nickel plated body for enhanced corrosion resistance

Application
  • Coax retrofit applications
  • Coaxial extension
  • Coaxial interface conversion
  • OEM coax applications


Product Resources

Key Specifications

Key Specifications

Connector Series 1
MCX
Connector Gender 1
Plug
Connector Polarity 1
Standard
Connector Impedance 1
50 Ohm
Connector Series 2
SMA
Connector Gender 2
Female
Connector Polarity 2
Standard
Connector Impedance 2
50 Ohm
Frequency, Min
DC
Frequency, Max
6 GHz
Adapter Body Style
Straight
Connector Mount Method 1
None
Connector Body Material 1
Brass
Connector Body Plating 1
Gold
Connector Mount Method 2
None
Connector Body Material 2
Beryllium Copper
Connector Body Plating 2
Gold
