Coaxial Adapter, SMA Female / MMCX Female

SKU BA3000
QTY available 21
Quantity Price
1 - 24 $12.59
25 - 49 $11.96
50 - 99 $11.33
100 + Call Us
Price $12.59

All Prices are in US Dollars and do not include duties

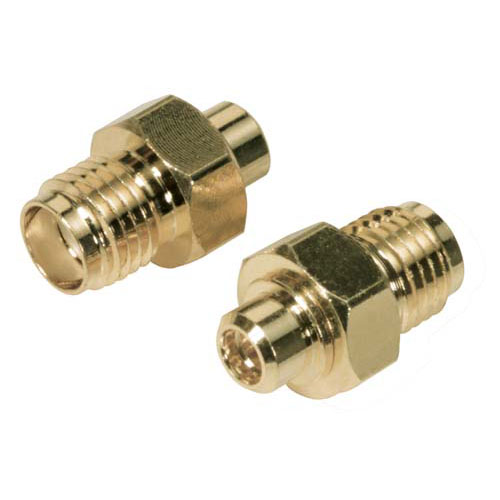

This SMA Jack to MMCX Jack adapter provides the ability to connect a device with a SMA plug to a device with a MMCX Plug. This type of interconnection is often found in test environments where connection between interfaces of different types is needed.

Features
  • Gold plated center contact for reduced signal loss
  • Male to female gender combination handy for interconnecting cable interfaces
  • Allows interconnection between SMA and MMCX interface types
  • Gold plated body for corrosion resistance

Application
  • Coaxial extension
  • Coaxial interface conversion
  • OEM coax applications
  • Coax retrofit applications


Product Resources

Key Specifications

Key Specifications

Connector Series 1
SMA
Connector Gender 1
Female
Connector Polarity 1
Standard
Connector Impedance 1
50 Ohm
Connector Series 2
MMCX
Connector Gender 2
Jack
Connector Polarity 2
Standard
Connector Impedance 2
50 Ohm
Frequency, Min
DC
Frequency, Max
6 GHz
Adapter Body Style
Straight
Connector Mount Method 1
None
Connector Body Material 1
Brass
Connector Body Plating 1
Gold over Nickel
Connector Mount Method 2
None
Connector Body Material 2
Brass
Connector Body Plating 2
Nickel
