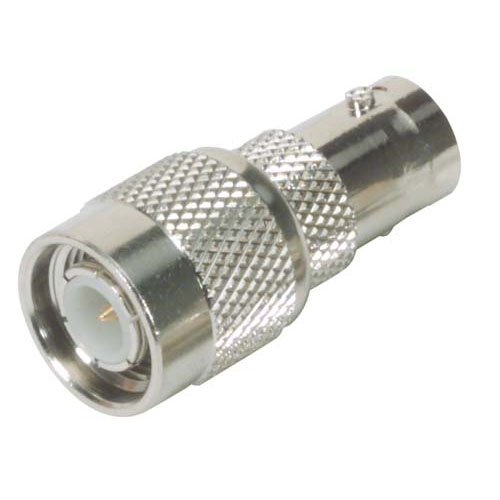

Coaxial Adapter, TNC Male / BNC Female

SKU BA3001
QTY available 232
Quantity Price
1 - 24 $11.59
25 - 49 $11.01
50 - 99 $10.43
100 + Call Us
Price $11.59

All Prices are in US Dollars and do not include duties



This BNC Jack to TNC Plug adapter provides the ability to connect a device with a BNC plug to a device with a TNC Jack . This type of interconnection is often found in test environments where connection between interfaces of different types is needed.

Features
  • Allows interconnection between BNC and TNC interface types
  • Nickel plated body for corrosion resistance
  • Gold plated center contact for reduced signal loss
  • Male to female gender combination handy for interconnecting cable interfaces

Application
  • Coax retrofit applications
  • Coaxial extension
  • Coaxial interface conversion
  • OEM coax applications


Product Resources

Key Specifications

Key Specifications

Connector Series 1
TNC
Connector Gender 1
Male
Connector Polarity 1
Standard
Connector Impedance 1
50 Ohm
Connector Series 2
BNC
Connector Gender 2
Female
Connector Polarity 2
Standard
Connector Impedance 2
50 Ohm
Adapter Body Style
Straight
Connector Mount Method 1
None
Connector Body Material 1
Brass
Connector Body Plating 1
Nickel
Connector Mount Method 2
None
Connector Body Material 2
Brass
Connector Body Plating 2
Nickel
