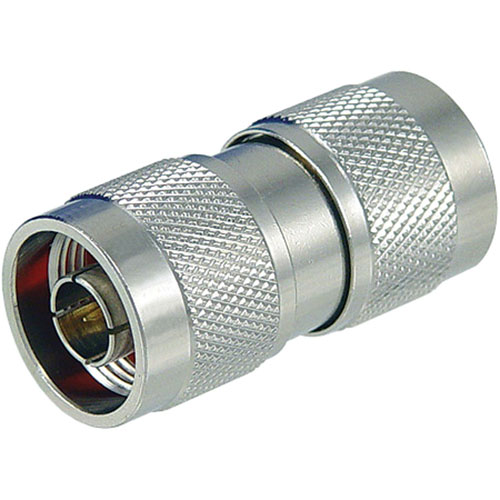

Coaxial Barrel Adapter, Type N-Male / Male

SKU AXA-NMNM
QTY available 2499
Quantity Price
1 - 24 $9.19
25 - 49 $8.27
50 - 99 $7.35
100 + Call Us
Price $9.19

All Prices are in US Dollars and do not include duties



This Type N male coupler provides the ability to interconnect two devices with Type N female interfaces. A common use for this device is to change the gender of a device from Type N female to Type N male.

Features
  • Couples devices with female Type N interfaces
  • Handy device to help solve your interconnection problems
  • Nickel plated body for enhanced corrosion resistance
  • Difficult to find male to male configuration
  • Gold plated contact pin for reduced signal loss

Application
  • Coaxial interface conversion
  • Low-loss coax
  • OEM coax applications
  • Coax retrofit applications
  • Coaxial Extension


Product Resources

Key Specifications

Key Specifications

Connector Series 1
N
Connector Gender 1
Male
Connector Polarity 1
Standard
Connector Impedance 1
50 Ohm
Connector Series 2
N
Connector Gender 2
Male
Connector Polarity 2
Standard
Connector Impedance 2
50 Ohm
Frequency, Min
DC
Frequency, Max
6 GHz
Adapter Body Style
Straight
Connector Mount Method 1
None
Connector Body Material 1
Brass
Connector Body Plating 1
Nickel
Connector Mount Method 2
None
Connector Body Material 2
Brass
Connector Body Plating 2
Nickel
