Coaxial Bulkhead Adapter, F Female / Female,75 Ohm (.5" D-Hole)

SKU BA330A
QTY available 1924
Quantity Price
1 - 24 $3.53
25 - 49 $3.35
50 - 99 $3.18
100 + Call Us
Price $3.53

All Prices are in US Dollars and do not include duties

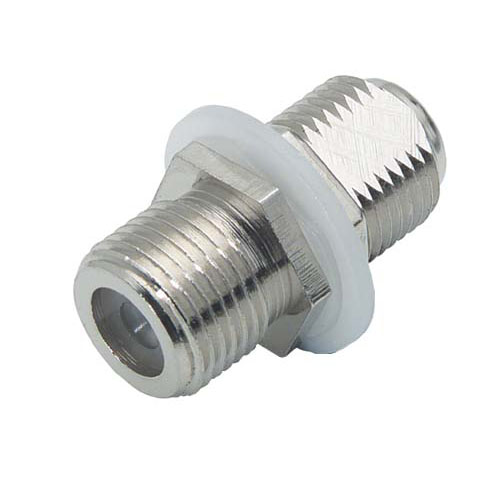

This insulated Type F female to female feed thru bulkhead coupler provides the ability to pass a coaxial connection through a panel or bulkhead utilizing a standard .340" single D mounting hole with the additional feature of providing a non conductive mounting surface to reduce ground loop problems. A common use for this device is to create a connection point on either side of an obstruction.

Features
  • Complete with nut and washer mounting hardware
  • Non conductive mounting shoulder washers provide insulation from panel
  • Provides 75 Ohm signal feed-thru for two Type F male interface devices
  • Single D bulkhead design for panel mounting
  • Nickel plated body for enhanced corrosion resistance

Application
  • Coax retrofit applications
  • Coaxial Extension
  • Coaxial interface conversion
  • OEM coax applications
