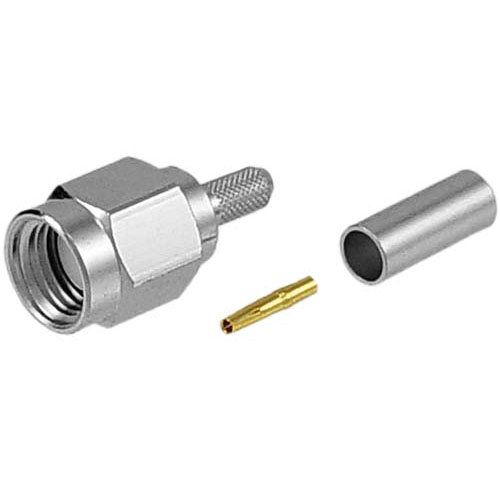

RP-SMA Plug Crimp for 100-Series Cable

SKU ARSP-1100
QTY available 147
Quantity Price
1 - 24 $8.99
25 - 49 $8.09
50 - 99 $7.19
100 + Call Us
Price $8.99

All Prices are in US Dollars and do not include duties



This Reverse Polarity SMA Plug is built for Low Loss applications, WLAN and various wireless applications. The ARSP-1100 presents a robust design that is simple to install with any 100-series cable. This connector is compatible with RG316, RG174, RG188‚ WBC-100‚ LMR®100A and Belden 7805 cable types. This L-com part is also has a gold finished contact to aid against signal loss as well as a cable retention greater than forty five pounds to make sure the connector does not allow the cable to slide out. Order online today!

Features
  • Can be used with RG316/174/188‚ WBC100‚ LMR®100A, Belden 7805 cable types

Application
  • RF Applications
  • Low Loss Coax Applications
  • Radio Pigtails
  • Wi-Fi Applications
  • WLAN


Product Resources

Key Specifications

Key Specifications

Polarity
Reverse Polarity
Connector Series
SMA
Connector Gender
Plug
Impedance
50 Ohm
Body Style
Straight
Mount Method
None
Minimum Frequency
DC
Maximum Frequency
6 GHz
Interface Type 1
RG316
Interface Type 2
RG174
Interface Type 3
RG188
Interface Type 4
WBC100
Interface Type 5
Belden 7805
