SMA Male Crimp for Belden 7807 Cable

SKU HPC781
QTY available 57
Quantity Price
1 - 24 $4.45
25 - 49 $4.23
50 - 99 $4.01
100 + Call Us
Price $4.45

All Prices are in US Dollars and do not include duties

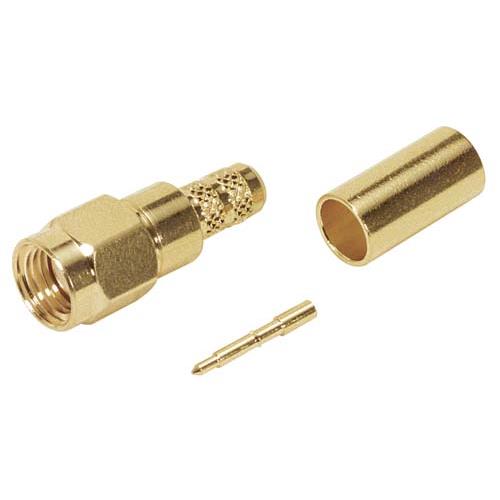

This male SMA connector is designed for crimp attachment to Belden 7807 style coaxial cable utilizing a standard crimp size of .213" for the crimp ferrule. The contact pin is designed for solder attachment to the cable center conductor. This 50 Ohm subminiature connector utilizes a threaded coupling mechanism making it a popular choice in higher frequency applications.

Features
  • Crimp style attachment for a robust assembly
  • Common size hex crimp allows quick and easy crimping
  • Gold plated contact pins to minimize signal loss
  • SMA male for Belden 7807 coaxial cable
  • Three piece design simplifies assembly process

Application
  • Coaxial cable assembly
  • Coaxial cable installation
  • Coaxial cable repair
  • Premise wiring


Product Resources

Key Specifications

Key Specifications

Polarity
Standard
Connector Series
SMA
Connector Gender
Male
Impedance
50 Ohm
Body Style
Straight
Mount Method
None
Interface Type 1
Belden 7807
