DB15 Male Connector for Field Termination

SKU DGB15MT1
QTY available Call us
Quantity Price
1 - 24 $20.59
25 - 49 $19.56
50 - 99 $18.53
100 + Call Us
Price $20.59

All Prices are in US Dollars and do not include duties

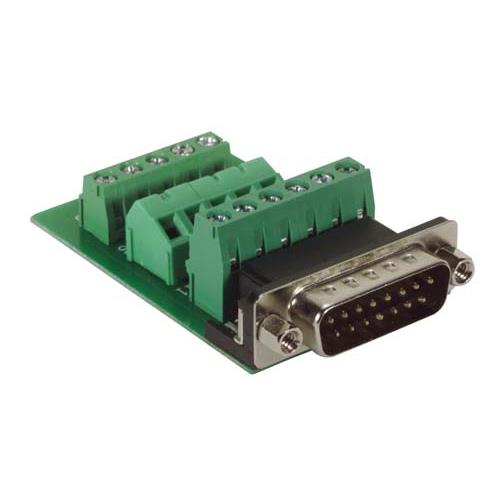

The DGB15MT1 field termination male connector provides an easy and convenient way to perform field termination of any cable. Separate connection points are provided for all 15 positions of the connector plus the ground. Terminal block design with set screws provides reliable electrical connections utilizing no special tools. The terminal block area is clearly marked making proper termination virtually foolproof. Panel mountable for thickness up to 0.062".

Features
  • Connector is DB15 male
  • Easily terminate DB15 male connectors in the field, no crimping or soldering required
  • Panel mountable for thicknesses of up to 0.062"
  • Terminal block allows for simple, quick wiring changes
  • Gold plated contacts provide reliable connections with repeated mating cycles

Application
  • Serial data transmission
  • Data networks
  • Device management
  • Instrument control
