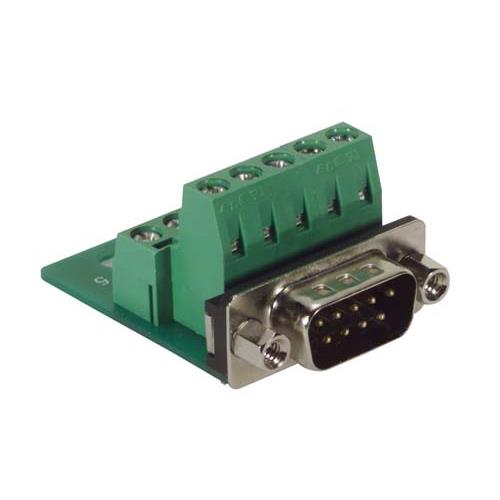

DB9 Male Connector for Field Termination

SKU DGB9MT1
QTY available 1775
Quantity Price
1 - 24 $14.99
25 - 49 $14.24
50 - 99 $13.49
100 + Call Us
Price $14.99

All Prices are in US Dollars and do not include duties



The DGB9MT1 field termination male connector provides an easy and convenient way to perform field termination of any cable. Separate connection points are provided for all 9 positions of the connector plus the ground. Terminal block design with set screws provides reliable electrical connections utilizing no special tools. The terminal block area is clearly marked making proper termination virtually foolproof. Panel mountable for thickness up to 0.062".

Features
  • Connector is DB9 male
  • Gold plated contacts provide reliable connections with repeated mating cycles
  • Panel mountable for thicknesses of up to 0.062"
  • Easily terminate DB9 male connectors in the field, no crimping or soldering required
  • Terminal block allows for simple, quick wiring changes

Application
  • Data networks
  • Instrument control
  • Serial data transmission
  • Device management
