Interface Module, DB9 Female

SKU RBMIDB09F
QTY available 13
Quantity Price
1 - 9 $119.99
10 - 24 $117.59
25 - 99 $115.19
100 + Call Us
Price $119.99

All Prices are in US Dollars and do not include duties

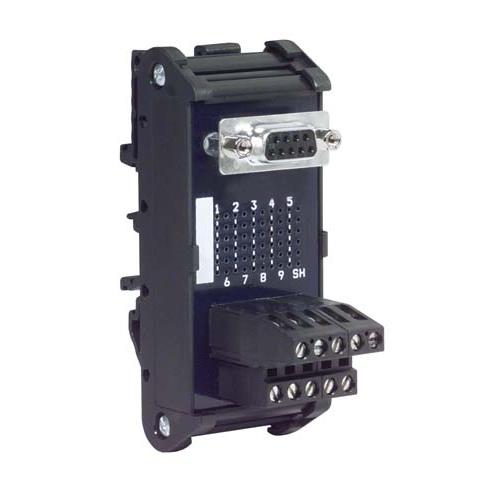

These DIN rail mountable DB9 female interface modules feature a unique series of plated through holes that allow for the insertion of electronic components inline or across any circuit. Terminal block connectors accept 26-12 AWG wire, are easily terminated and do not require crimp ferrules.

Features
  • Provides a transition from standard D-Sub & RJ45 connectors to individually wired terminal blocks
  • Connectors are equipped with threaded locking inserts to insure mating cables are secured
  • Printed marking helps to simplify wiring
  • PCB component holes on all modules allows for various components to be installed across any circuit
  • Also available with DB15, DB25, DB37, DB50 and RJ45 female connectors

Application
  • Serial data transmission
  • Data networks
  • Instrument control
  • Device management
